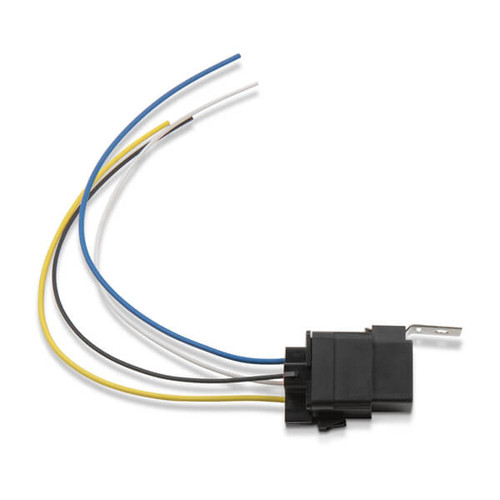

Garmin OnDeck™ Relay Switch (12 Vdc)
Model: 010-13009-01Control your vessel remotely using the OnDeck™ Hub and a relay switch. Add up to five switches to your OnDeck Hub to stay in control.
Verify that the input power for your OnDeck Hub operates between 10 Vdc and 15.6 Vdc to ensure compatibility with your system.
Specifications| Operating temperature range | From -15° to 85°C (from 5° to 185°F) |
| Storage temperature range | From -40° to 155°C (from -40° to 311°F) |
| Control voltage (coil) | 7.8 to 15.6 Vdc |
| Load power min. (contacts) | 0.1 A |
| Load power max. (contacts) | Up to 15 A at 10 to 16 Vdc Up to 9 A at 20 to 32 Vdc |
