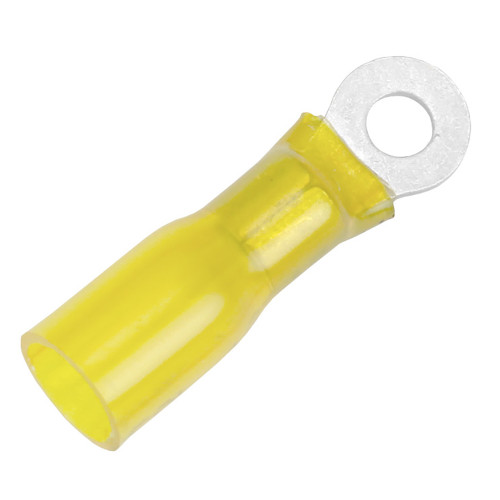

Pacer 12-10 AWG Heat Shrink Ring Terminals | Boat Supply Store
Ensure robust and protected electrical connections essential for navigating demanding marine environments. These Pacer ring terminals utilize tinned copper construction for superior conductivity and corrosion resistance, rated for 600V with an operating temperature range of -55°C to 125°C. Their integrated heat shrink insulation provides a watertight seal, preventing terminal disconnects and safeguarding against environmental ingress, critical for bilge pump wiring on a Bertram or trolling motor connections on a flats boat.
Key Features
- Resilient Tinned copper conductor for maximum conductivity and corrosion resistance.
- Sealed Heat shrink insulation offers a protective, watertight barrier.
- Versatile Compatible with 12-10 AWG wire gauges.
- Standard Features a 1/4" stud size for broad compatibility.
- Robust Rated for up to 600 Volts for high-power applications.
- Extreme Operates reliably between -55°C and 125°C.
- Economical 25 terminals are included in each pack.
- Reliable Prevents terminal disconnection and ensures electrical integrity.
Specifications
| Product Specifications | |
|---|---|
| Conductor Material | Tinned Copper |
| Insulation Type | Heat Shrink |
| Wire Gauge Compatibility | 12-10 AWG |
| Stud Size | 1/4" |
| Voltage Rating | 600V |
| Operating Temperature Range | -55°C to 125°C |
| Terminal Pad Width | 0.54 inches |
| Quantity per Pack | 25 |
Who This Is For
This product is ideal for marine electricians requiring reliable connections and boat owners performing DIY electrical repairs. It ensures secure electrical systems that withstand harsh saltwater conditions.
How It Compares
| Feature | Pacer 12-10 AWG Heat Shrink Ring Terminals | Competitor |
|---|---|---|
| Wire Gauge | 12-10 AWG | 12-10 AWG |
| Stud Size | 1/4" | 1/4" |
| Material | Tinned Copper | Tinned Copper |
| Insulation Type | Heat Shrink | Heat Shrink |
| Voltage Rating | 600V | 600V |
| Operating Temperature | -55°C to 125°C | -55°C to 125°C |
| Package Size | 25 | 25 |
Common Concerns Answered
Will the heat shrink insulation degrade in marine environments?
Pacer's heat shrink insulation is specifically engineered for marine conditions, offering robust protection against saltwater, UV exposure, and temperature fluctuations, ensuring long-term integrity.
Are these terminals as reliable as non-marine specific options?
These terminals are manufactured with tinned copper and a specialized heat shrink compound designed to prevent corrosion and ensure a secure connection in harsh marine environments, exceeding the performance of standard industrial terminals.
What if the heat shrink tubing seems stiff?
Proper installation requires adequate heat application with a heat gun to ensure full shrinkage and flexibility. Insufficient heating may result in a stiffer feel, but it does not compromise the seal.
Frequently Asked Questions
What is the maximum wire gauge this ring terminal can accommodate?
This ring terminal is designed to accommodate wire gauges from 12 AWG to 10 AWG.
What is the stud size for this ring terminal?
The stud size for this ring terminal is 1/4 inch.
What is the operating temperature range for this heat shrink ring terminal?
The operating temperature range for this heat shrink ring terminal is -55°C to 125°C.
What material is used for the conductor of this ring terminal?
The conductor material used for this ring terminal is tinned copper.
How many ring terminals are included in this pack?
This pack contains twenty-five (25) ring terminals.
