T-H Marine 4" Set Back Jack Plate | Boat Supply Store

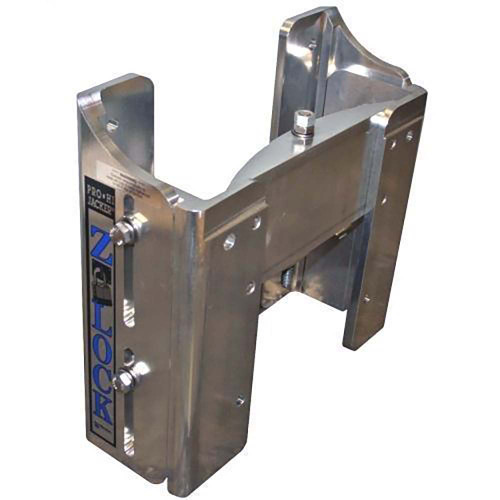

Maximize outboard efficiency and optimize hull performance with the T-H Marine Z-Lock™ 4" Set Back Manual Jack Plate. This unit integrates aircraft-grade aluminum construction, featuring a robust 1/2" material thickness for superior durability. It is engineered to accommodate V6 and V8 outboards up to 300 horsepower, providing 5 inches of vertical adjustment for precise engine height tuning, critical for achieving optimal planing speeds on offshore fishing vessels.
Key Features
- Eliminate side slippage with the innovative Z-Lock™ Jack Plate Design.
- Securely lock side plates in place via matching slotted extrusions.
- Constructed from strong aircraft-grade aluminum.
- Ensured durability with full 1/2" material thickness.
- Supports all V6 and V8 Outboards up to 300 hp.
- Effortlessly adjust engine height from the top of the jack.
- Provides a consistent 4" setback for hull optimization.
- Offers a full 5" of vertical adjustment for fine-tuning.
Specifications
| Product Specifications | |
|---|---|
| Brand | T-H Marine Supplies |
| Model | Z-Lock™ 4" Set Back Manual Single Adjust Jack Plate |
| MPN | JPZ-4-DP |
| SKU | CWR92149 |
| Material | Aircraft-grade aluminum |
| Material Thickness | 1/2" |
| Outboard Horsepower Rating | Up to 300 hp (V6/V8) |
| Setback | 4" |
| Vertical Adjustment Range | 5" |
| Adjustment Type | Single Point Manual (Top Adjust) |
| P65 Warning | Included |
Who This Is For
Boaters requiring precise outboard height adjustment for V6/V8 engines up to 300 hp to enhance performance and handling. Ideal for those who prioritize robust construction and the enhanced stability offered by a manually operated jack plate.
How It Compares
| Feature | T-H Marine 4" Set Back Jack Plate | Competitor |
|---|---|---|
| Setback | 4" | — |
| Vertical Adjustment | 5" | — |
| Max Outboard HP | 300 hp | 150 hp |
| Material Thickness | Full 1/2" | Not specified |
| Stabilization Design | Z-Lock™ Design | Typically less capable |
| Adjustment Type | Single Adjust (Top) | Manual |
