Actisense NMEA 2000 Micro Cable 0.5m | Boat Supply Store

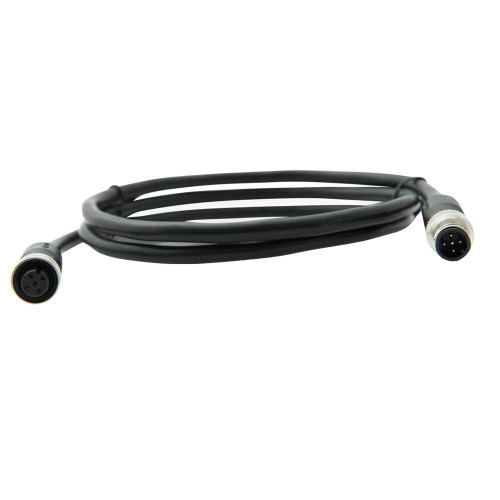

For any vessel requiring robust data integrity, this 0.5-meter Actisense NMEA 2000 Micro Cable Assembly ensures reliable connectivity within your marine electronics network. Featuring 22 AWG power and drain wires alongside 24 AWG data wires, it is built for demanding offshore environments with a PVC jacket and IP67 rating when properly mated. This cable is specifically engineered for extending NMEA 2000 backbones or creating drop connections for critical sensor data transmission, such as on a center console fishing boat in the Gulf of Mexico.
Key Features
- Reliable 0.5-meter NMEA 2000 Micro Cable Assembly
- Durable IP67 protection when mated for water resistance
- Secure M12 'A'-polarization connectors
- High-Quality gold-plated brass male and phosphor bronze female contacts
- Robust PVC jacket material for marine environments
- Dependable 22 AWG power and drain wires
- Efficient 24 AWG data wires for fast signal transmission
- Certified UL-certified cable for assured safety and performance
Specifications
| Product Specifications | |
|---|---|
| Length | 0.5 meter |
| Connector Type | M12 'A'-polarization (Micro) |
| Jacket Material | PVC |
| IP Rating (Mated) | IP67 |
| Power Wire Gauge | 22 AWG |
| Drain Wire Gauge | 22 AWG |
| Data Wire Gauge | 24 AWG |
| Contact Material | Brass, gold-plated (male); Phosphor bronze, gold-plated (female) |
| Current Rating | 3A |
| Voltage Rating | 60VDC |
| Operating Temperature | -20°C to +70°C |
Who This Is For
Marine electronics installers and boat owners who need to precisely extend or connect devices within a NMEA 2000 network with a short, highly reliable cable. This is ideal for system integrators requiring dependable data transmission for critical navigation and sensor equipment.
How It Compares
| Feature | Actisense NMEA 2000 Micro Cable 0.5m | Garmin 010 |
|---|---|---|
| Length | 0.5m | 0.5m |
| Connector Type | M12 'A'-polarization (Micro) | Micro-C |
| Jacket Material | PVC | PVC |
| IP Rating (Mated) | IP67 | IP67 |
| UL-Certified Cable | Yes | Typically less capable |
Common Concerns Answered
What is the return policy for this Actisense cable?
This product cannot be returned to the original point of purchase; direct manufacturer contact is required for any issues, ensuring efficient resolution for critical marine equipment.
Is this cable as durable as more expensive options?
While the price point may be slightly higher than some generic alternatives, the Actisense A2K-TDC-0M5 is justified by its superior construction, including UL-certified cable and gold-plated contacts, ensuring long-term reliability in harsh marine conditions.
I need to be sure about my purchase, what if I have doubts?
Due to the non-returnable policy, it is recommended to verify your specific NMEA 2000 network requirements before purchasing to ensure this 0.5-meter cable precisely meets your connectivity needs.
Frequently Asked Questions
What type of connectors does the Actisense A2K-TDC-0M5 use?
The Actisense A2K-TDC-0M5 utilizes M12 'A'-polarization Micro connectors, ensuring a secure and standardized connection within NMEA 2000 networks.
What is the IP rating of the Actisense A2K-TDC-0M5 when mated?
When properly mated, this cable assembly achieves an IP67 rating, providing robust protection against dust ingress and immersion in water up to 1 meter for 30 minutes.
Can this cable be used to extend an existing NMEA 2000 backbone?
Yes, this 0.5-meter cable is designed for extending NMEA 2000 backbones or as a drop cable, allowing for flexible network configuration.
What is the wire gauge for the power, data, and drain wires in this cable?
The Actisense A2K-TDC-0M5 features 22 AWG for both power and drain wires, and 24 AWG for the data wires, ensuring adequate conductivity and signal integrity.
What is the jacket material of the Actisense A2K-TDC-0M5 cable?
The jacket material is PVC (Polyvinyl Chloride), chosen for its durability and resistance to marine environmental factors.
