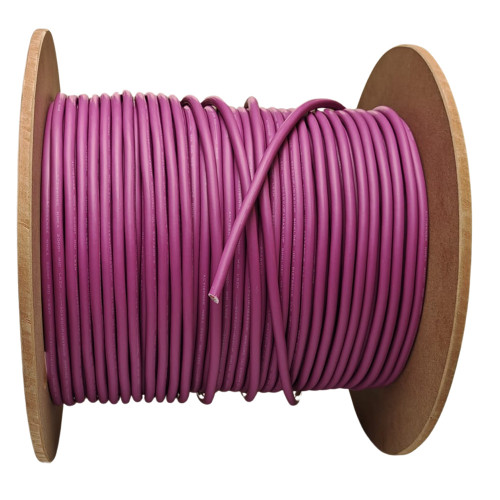

Actisense NMEA2000 100M Micro Bulk Cable Reel | Boat Supply Store
For complex marine electronic installations requiring precise network topology, this 100-meter Actisense NMEA 2000 Micro Bulk Lite cable provides the flexibility to construct or extend your vessel's backbone. Engineered with a five-wire configuration including 22 AWG power and 24 AWG data conductors, it ensures reliable data transmission and power delivery. Its robust construction offers excellent Radio Frequency Interference (RFI) protection and a 60VDC rated voltage, making it suitable for sophisticated systems on offshore fishing vessels or large cruising catamarans operating in electromagnetically challenging environments.
Key Features
- Extend your NMEA 2000 backbone up to 100 meters with this bulk cable.
- Create custom network lengths for precise system integration.
- Protect against RFI with effective shielding for clean signal integrity.
- Integrate seamlessly with Actisense QNB-1 Quick Network Blocks and FFCs.
- Ensure reliable power delivery with 22 AWG conductors.
- Maintain robust data transfer with 24 AWG signal conductors.
- Operate reliably in harsh marine conditions with a -25C to +75C temperature range.
- Comply with industry standards for robust NMEA 2000 networking.
Specifications
| Product Specifications | |
|---|---|
| Cable Type | NMEA 2000 Micro Bulk Lite |
| Length | 100m |
| Rated Voltage | 60VDC |
| Rated Current | 3A |
| Jacket Outer Diameter | 6.85mm |
| Power Conductor Gauge | 22 AWG |
| Data Conductor Gauge | 24 AWG |
| Operating Temperature | -25C to +75C |
| Shielding | Yes |
| Wire Configuration | Five-wire (power, ground, two signal, drain) |
Who This Is For
This 100-meter reel of NMEA 2000 Micro Bulk Lite cable is designed for marine electronics installers and boat owners who require custom-length solutions for building or extending their vessel's NMEA 2000 network backbone. It is ideal for system integrators needing to precisely tailor network configurations for optimal performance and reliability.
How It Compares
| Feature | Actisense NMEA2000 100M Micro Bulk Cable Reel | Competitor |
|---|---|---|
| Reel Length | 100m | 100m |
| Rated Voltage | 60VDC | 60VDC |
| Rated Current | 3A | 3A |
| Jacket Outer Diameter | 6.85mm | null |
| Braid Coverage | 65% minimum | null |
Common Concerns Answered
Customers report difficulty terminating bulk cable. What's the solution?
Proper termination of bulk NMEA 2000 cable requires specific tools such as Field Fit Connector (FFC) crimpers and strippers. Actisense also offers QNB-1 Quick Network Blocks, which can simplify the termination process without requiring individual connector assembly, reducing the complexity for installers.
How does 'Lite' cable differ from standard NMEA 2000 cable?
NMEA 2000 Lite cable, like this Actisense product, is typically designed for backbone applications and may have a slightly different construction or shielding compared to standard drop cables. Always consult the specific NMEA 2000 standard and manufacturer documentation for compatibility and application suitability.
Is this cable suitable for any NMEA 2000 application?
This bulk cable is primarily intended for creating or extending NMEA 2000 backbones up to 100 meters. While it can be used for drop cables, its bulk nature and termination requirements make it more suited for custom backbone installations rather than direct device connections where pre-made cables are often more practical.
Frequently Asked Questions
What is the maximum length for an NMEA 2000 backbone using this cable?
The NMEA 2000 standard specifies a maximum backbone length of 100 meters, which this 100-meter bulk cable is designed to support.
Can this cable be used for drop cables?
Yes, this cable can technically be used for drop cables, but its primary design and the use case for bulk cable is for constructing or extending the main backbone of the network due to its length and termination style.
What is the difference between NMEA 2000 Lite cable and standard NMEA 2000 cable?
NMEA 2000 Lite cable is often optimized for backbone installations and may have specific construction characteristics regarding impedance or shielding. Always verify the datasheet for exact specifications and application guidance.
What type of connectors are compatible with this bulk cable?
This Actisense bulk cable is designed for termination using Actisense Field Fit Connectors (FFC) or can be terminated into Actisense QNB-1 Quick Network Blocks.
What are the wire specifications within this NMEA 2000 cable?
The cable contains five wires: 22 AWG conductors for power and ground, 24 AWG conductors for data signals, and a drain wire, all housed within a robust jacket for protection.
