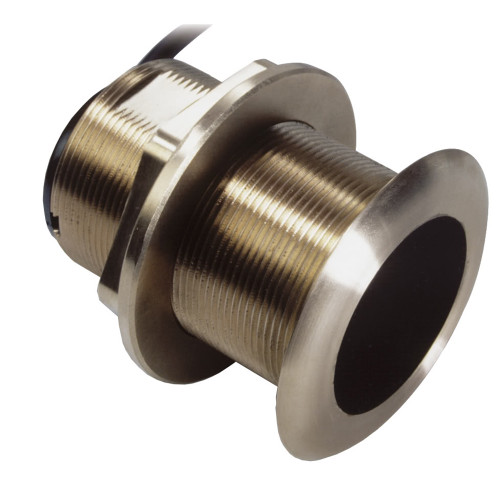

Airmar B60 20 Tilt Transducer 9-Pin | Boat Supply Store
Engineered for boats with moderate hull deadrise, this transducer ensures a precisely downward-pointing sonar beam for superior echo acquisition. It delivers 600W of power across dual frequencies of 50 kHz (45° beamwidth to 353m) and 200 kHz (12° beamwidth to 206m), providing accurate depth and water temperature data. Ideal for fiberglass or wood hulled center-console or trailered vessels, it's crucial for precise bottom contour mapping during recreational fishing excursions.
Key Features
- Achieve optimal depth readings with a fixed 20° tilted element.
- Benefit from powerful 600W performance for detailed sonar returns.
- Utilize dual-frequency operation for versatile underwater detection.
- Experience superior deep-water coverage with a 45° beamwidth at 50 kHz.
- Gain precise target separation with a narrow 12° beamwidth at 200 kHz.
- Ensure durability with a low-profile bronze thru-hull housing.
- Obtain accurate water temperature data with a fast-response sensor.
- Maintain clean hull aesthetics with a low-profile design.
Specifications
| Product Specifications | |
|---|---|
| Power Rating | 600W |
| Frequency | 50/200 kHz |
| Beamwidth (50 kHz) | 45° |
| Max Depth (50 kHz) | 353m (1200') |
| Beamwidth (200 kHz) | 12° |
| Max Depth (200 kHz) | 206m (700') |
| Housing Material | Bronze |
| Tilted Element | Fixed 20° |
| Hull Type Compatibility | Fiberglass or Wood |
| Hole Size Required | 60mm (2-3/8") |
| Connector Type | 9-pin |
| Data Output | Depth and Water Temperature |
Who This Is For
Boaters with fiberglass or wood hulls, especially on center-console or trailered vessels, requiring accurate depth and temperature readings. It is the optimal choice for those seeking precise sonar performance despite hull deadrise.
How It Compares
| Feature | Airmar B60 20 Tilt Transducer 9-Pin | Competitor |
|---|---|---|
| Mounting Style | Thru-Hull | Transom/Trolling Motor Mount, Transom Mount |
| Housing Material | Bronze | Plastic, Plastic |
| Tilted Element | Yes (20°) | No, No |
| Power Rating | 600 W | 500 W RMS, N/A |
| Low Frequency Beamwidth (approx.) | 45° @ 50 kHz | 40° @ 50 kHz, 60° @ 83 kHz |
| High Frequency Beamwidth (approx.) | 12° @ 200 kHz | 15° @ 200 kHz, 15° @ 200 kHz |
| Hull Material Compatibility | Fiberglass or Wood | All hull types (transom mount), All hull types |
Common Concerns Answered
Is this transducer suitable for all hull types?
The Airmar B60 with its bronze housing is specifically designed and recommended for fiberglass or wood hulls to ensure optimal performance and longevity. It is not suitable for metal hulls.
Will I need to drill a hole in my boat for installation?
Yes, as a thru-hull transducer, installation requires drilling a 60mm (2-3/8") hole through the hull. Proper sealing techniques are critical to prevent water ingress.
Can I get advanced scanning features like DownVü or SideVü with this transducer?
The Airmar B60 is a traditional sonar transducer focused on depth and temperature readings. For scanning sonar features like DownVü or SideVü, you would need a different transducer model designed for those specific technologies.
Frequently Asked Questions
What is the power output of the Airmar B60 transducer?
The Airmar B60 transducer has a power output of 600 watts.
What frequencies does the Airmar B60 transducer operate on?
The Airmar B60 transducer operates on dual frequencies: 50 kHz and 200 kHz.
What is the maximum depth rating for the Airmar B60 transducer?
The maximum depth rating is 353 meters (1200 feet) at 50 kHz and 206 meters (700 feet) at 200 kHz.
What is the purpose of the Tilted Element™ feature in the Airmar B60 transducer?
The Tilted Element™ technology with its fixed 20° angle is designed to compensate for hull deadrise, ensuring the sonar beam points directly downward for accurate readings on boats with moderate hull angles.
What Navico xSonic devices is this transducer compatible with?
This transducer is compatible with Navico xSonic devices that feature a 9-pin connector. Specific model compatibility should be verified with your Navico chartplotter or fishfinder's manual.
