Description
Albin Group 500 GPH 12V Cartridge Bilge Pump | Boat Supply Store
Effectively manage unwanted water ingress on smaller vessels with this 12V submersible bilge pump. Engineered for continuous duty, it delivers a robust 500 GPH (32 L/min) flow rate, reducing to 400 GPH (25 L/min) at a 3ft head, ensuring rapid dewatering. Its durable ABS housing and stainless steel shaft are built to withstand harsh marine environments, making it a reliable component for a Bayliner or a skiff operating in the Gulf Coast shallows.
Key Features
- Replaceable cartridge motor for simplified maintenance
- 500 GPH (32 L/min) maximum flow rate
- Submersible 12V operation for versatile placement
- Durable ABS thermoplastic housing
- Compact design for easy installation in tight spaces
- Stainless steel shaft for corrosion resistance
- Detachable universal base plate with integrated strainer
- Pin for T-slot attachment of an aftermarket level switch
Specifications
| Product Specifications | |
|---|---|
| Voltage | 12V |
| Capacity | 500 GPH (32 L/min) |
| Head | 400 GPH (25 L/min) at 3ft |
| Housing Material | ABS |
| Shaft Material | Stainless Steel |
| Amperage Draw | 1.8A |
| Fuse Requirement | 5A |
| Discharge Port Size | 3/4" (19 mm) |
Who This Is For
Owners of pleasure craft up to 6 meters (20 feet) requiring a dependable, compact, and user-serviceable 12V submersible bilge pump for routine bilge water evacuation or emergency situations.
How It Compares
| Feature | Albin Group 500 GPH 12V Cartridge Bilge Pump | Competitor |
|---|---|---|
| Flow Rate (GPH) | 500 | 500, 500 |
| Voltage | 12V | 12V, 12V |
| Amperage | 1.8A | 2.5A, 3A |
| Replaceable Motor Cartridge | Yes | No, No |
| Automatic Operation (Integrated) | No (requires separate switch) | Yes, No |
| Max Boat Length | 6m (20 Ft) | Up to 35 Ft, Up to 25 Ft |
Common Concerns Answered
Does this pump include an automatic float switch?
No, this Albin Group Cartridge Bilge Pump requires a separate float switch for automatic operation, offering flexibility in system design.
Is this pump powerful enough for heavy water ingress?
With a 500 GPH capacity, this pump is ideal for routine water removal on smaller vessels up to 20ft; for larger boats or significant water ingress, consider a higher-capacity pump.

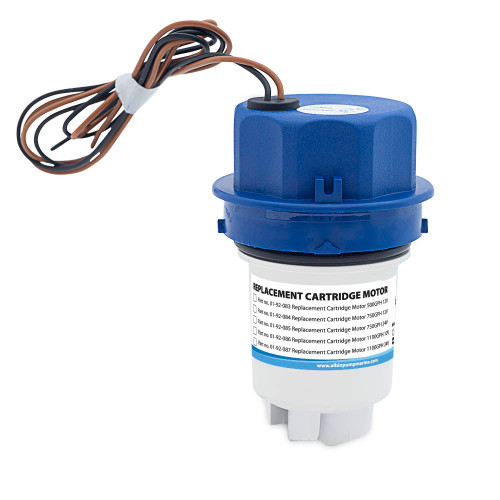

What is the primary advantage of the cartridge motor design?
The user-replaceable cartridge motor significantly simplifies maintenance and extends the pump's operational lifespan by allowing for quick motor swaps without replacing the entire pump housing.
Frequently Asked Questions
What is the flow rate of the Albin Group Cartridge Bilge Pump 500GPH?
The pump provides a maximum flow rate of 500 GPH (32 L/min) and 400 GPH (25 L/min) at a 3ft head.
What voltage does this bilge pump operate on?
This bilge pump operates on a standard 12V DC electrical system.
Is this bilge pump submersible?
Yes, this is a submersible bilge pump designed to operate fully submerged in water.
What is the amperage draw of this pump?
The Albin Group Cartridge Bilge Pump has an amperage draw of 1.8A.
What fuse size is recommended for this pump?
A 5A fuse is recommended to protect this 1.8A bilge pump.
