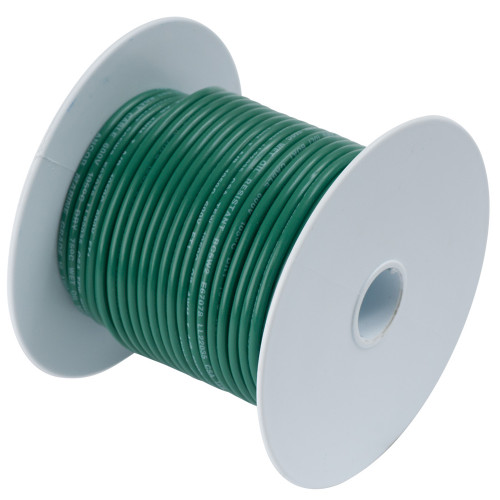

Ancor Green 18 AWG Tinned Copper Wire - 100' | Boat Supply Store
Engineered for the demanding marine environment, this 18 AWG Ancor Green Tinned Copper Wire provides unparalleled electrical integrity and service life, crucial for maintaining critical systems aboard any vessel. Its premium vinyl insulation is rated for 600V and operates reliably from 105°C dry to 75°C wet, while remaining flexible down to -40°F/C. The ultra-flexible Type 3 stranded tinned copper conductor resists saltwater, battery acid, oil, gasoline, and UV, ensuring robust performance in challenging conditions, from coastal cruising to offshore fishing. With a nominal outer diameter of 3mm, it offers a balance of current carrying capacity and ease of installation in tight spaces.
Key Features
- Marine Grade tinned copper wire ensures superior corrosion resistance and conductivity.
- Exceeds Standards including UL 1426, ABYC, and US Coast Guard Charter boat requirements for safety and reliability.
- Extreme Temperature Flexibility remains pliable down to -40°F/C, preventing cracking in cold conditions.
- Comprehensive Environmental Resistance guards against saltwater, battery acid, oil, gasoline, heat, abrasion, and UV radiation.
- Premium Vinyl Insulation rated for 600V and 105°C dry / 75°C wet applications.
- Ultra Flexible Stranding utilizes Type 3 tinned copper for enhanced pliability and durability.
- Optimal Wire Gauge at 18 AWG, suitable for a wide range of low-voltage marine circuits.
- Generous 100' Length provides ample material for complex wiring runs.
Specifications
| Product Specifications | |
|---|---|
| Wire Gauge | 18 AWG |
| Length | 100' |
| Material | Tinned Copper |
| Insulation Type | Premium Vinyl |
| Voltage Rating | 600V |
| Temperature Rating (Dry) | 105°C |
| Temperature Rating (Wet) | 75°C |
| Flexibility | Flexible to -40°F/C |
| Resistance | Salt water, battery acid, oil, gasoline, heat, abrasion, and UV |
| Stranding | Type 3 |
| Nominal O.D. (inches) | 7/64 |
| Nominal O.D. (mm) | 3 |
Who This Is For
Marine enthusiasts and boat owners demanding the highest standards in electrical system reliability, and professional marine electricians specifying components for critical vessel applications. Ideal for those who prioritize long-term durability and adherence to rigorous marine safety certifications.
How It Compares
| Feature | Ancor Green 18 AWG Tinned Copper Wire - 100' | Blue Sea Systems |
|---|---|---|
| Wire Gauge | 18 AWG | 18 AWG |
| Length | 100 ft | — |
| Material | Tinned Copper | Tinned Copper |
| Insulation Type | Premium Vinyl | PVC |
| Max Dry Temperature Rating | 105°C | null |
| Flexibility in Extreme Cold | Stays flexible to -40°F/C | null |
| Exceeds Standards | UL 1426, ABYC, USCG | ABYC |
Common Concerns Answered
Is Ancor Green 18 AWG Tinned Copper Wire more expensive than standard electrical wire?
While Ancor Marine Grade wire may have a higher initial cost than non-marine grade alternatives, its superior construction and material selection provide significantly enhanced longevity and resistance to environmental degradation, offering a better long-term value for critical marine electrical systems.
Are specific lengths or colors of Ancor Marine Grade wire always readily available?
Availability of specific lengths or colors can fluctuate due to high demand for Ancor's premium marine products. It is recommended to check current stock levels or plan purchases in advance, especially for specialized projects.
Why is the price of marine-grade wire higher?
The elevated cost of marine-grade wire like Ancor's is justified by its specialized construction, including tinning for corrosion resistance, premium insulation rated for harsh environments, and compliance with stringent safety standards such as UL 1426 and ABYC, ensuring superior durability and safety on board.
Frequently Asked Questions
What is the temperature rating for Ancor Green 18 AWG Tinned Copper Wire?
The premium vinyl insulation is rated for 105°C in dry conditions and 75°C in wet conditions.
What standards does Ancor Marine Grade wire exceed?
Ancor Marine Grade wire exceeds UL 1426, ABYC, and US Coast Guard Charter boat standards.
Is Ancor Green 18 AWG Tinned Copper Wire resistant to corrosion and electrolysis?
Yes, the tinned copper conductor provides superior resistance to corrosion and electrolysis, crucial for maintaining electrical integrity in a saltwater environment.
What is the nominal outer diameter of Ancor Green 18 AWG Tinned Copper Wire?
The nominal outer diameter is 7/64 inches, or 3mm.
What chemicals is this product known to expose users to in California?
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more specific details, please refer to California Proposition 65 warnings.
