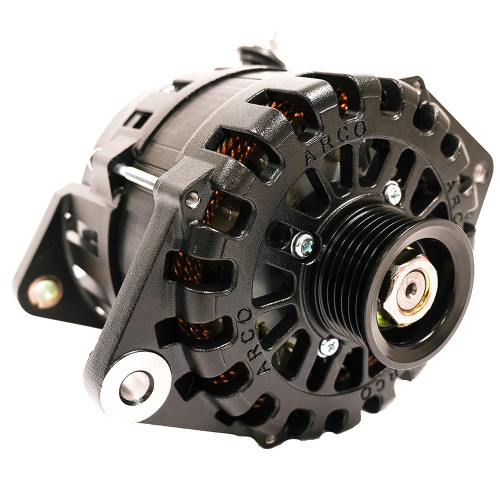

ARCO Zeus A225S 3.15 Alternator | Boat Supply Store
For vessels demanding substantial electrical replenishment, this ARCO Marine Zeus A225S 3.15 Alternator delivers unmatched power density, producing 254 Amps max cold output. Engineered for sustained amperage, it achieves 157 Amps at hot idle speeds, minimizing generator reliance for offshore cruising. Its advanced thermal management, incorporating heat-shedding coatings and dual fans, ensures cooler operation up to 110°C maximum continuous operating temperature.
Key Features
- Highest power output in its size/class for rapid battery bank replenishment
- Engineered for high energy production to support extensive onboard electronics
- Suitable for demanding marine, RV, military, and commercial applications
- Rapidly charges large battery banks, minimizing downtime
- Coolest operating temperatures via heat shedding coatings, external rectifier, and dual cooling fans
- Optimized for performance at idle speeds, reducing generator dependence
- Internal/External regulation for versatile system integration
- SAE J1171 Certified for safe operation in hazardous marine environments
Specifications
| Product Specifications | |
|---|---|
| Voltage | 12V |
| Rotor Poles | 16 |
| Stator Diameter | 130mm |
| Frame Size | Small Frame |
| Weight | 12 lbs |
| Regulation Type | Internal/External |
| Output Voltage | 14.1v |
| Finish | Black Cerakote/E-coat |
| Cut-In Speed | 1,061 RPM |
| Max Alternator Speed | 19,000 RPM |
| Battery Post Size | M8 |
| Pulley Type | 49K6 6-groove |
| Max Output (Cold) | 254 Amps |
| Sustained Cruising Output (Hot) | 187 Amps |
| Sustained Idle Output (Hot) | 157 Amps |
| Max Continuous Operating Temperature | 110C |
| Replaces | 3.15 saddle mount styles (Hitachi, Lucas, Mitsubishi, most Yanmars) |
Who This Is For
Boat owners, RV enthusiasts, military personnel, and commercial operators who require high-output, reliable alternators for charging large battery banks, especially in demanding marine environments. It's ideal for those seeking superior performance at idle speeds and cooler operating temperatures for sustained amperage output.
How It Compares
| Feature | ARCO Zeus A225S 3.15 Alternator | PowerMax 12V 150A High Output Alternator |
|---|---|---|
| Max Output (Cold, 9,000 RPM) | 254 Amps | 150 Amps |
| Sustained Idle Output (Hot, 3,000 RPM) | 157 Amps | Not Specified |
| Regulation | Internal/External (Internally regulated with adaptor for optional external regulation.) | Internal |
| SAE J1171 Certified | Yes | Not Specified |
| Cooling | Heat shedding coatings, external rectifier, dual cooling fans | Not Specified |
Common Concerns Answered
I'm concerned about the price and potential need for belt upgrades.
While the initial investment may be higher than standard units, the ARCO Marine Zeus A225S 3.15 Alternator's superior power output, sustained amperage at idle, and advanced cooling justify the cost for critical applications. For some engine configurations, a serpentine belt system upgrade might be necessary, which can be factored into the overall system modification for enhanced reliability and performance.
Will this alternator require a complex installation?
Installation complexity can vary. While it replaces common 3.15 saddle mount styles, a serpentine belt upgrade may be required for certain engines, potentially adding complexity. Professional installation is strongly recommended to ensure optimal performance, safety, and proper integration due to the high amperage output.
Can this alternator be used with modern lithium batteries?
Yes, this alternator can charge lithium batteries, especially when paired with an optional ARCO Zeus Bluetooth Alternator Regulator, which is recommended for maximum performance and precise charging profiles for lithium chemistries. This ensures optimal battery health and longevity.
Frequently Asked Questions
What is the maximum output of the ARCO Marine Zeus A225S 3.15 Alternator?
The ARCO Marine Zeus A225S 3.15 Alternator delivers a maximum cold output of 254 Amps.
What type of battery banks can this alternator charge?
This alternator is engineered for rapid charging of large battery banks, suitable for marine deep cycle, AGM, gel, and with an optional regulator, lithium batteries.
Does this alternator require an external voltage regulator?
The ARCO Marine Zeus A225S 3.15 Alternator is internally regulated but includes an adapter for optional external regulation, offering flexibility in system design.
What is the sustained cruising output of this alternator?
The sustained cruising output (hot) for this alternator is 187 Amps.
What pulley system is recommended for this alternator?
A 49K6 6-groove pulley is specified for this alternator. A V-belt upgrade to serpentine may be required for some applications.
