Description

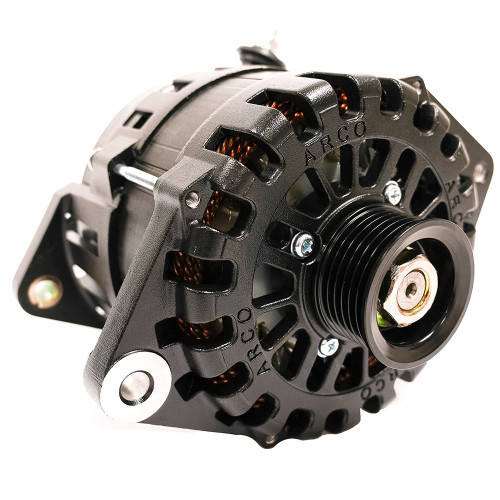

ARCO Zeus A275L 311A Alternator | Boat Supply Store
For vessels and operations demanding maximum electrical output, especially at lower engine speeds, this unit addresses critical power needs. It provides a maximum output of 311 Amps (Cold) and a sustained cruising output of 227 Amps (Hot), ensuring rapid replenishment of large battery banks. Engineered with superior cooling technology and optimized performance at idle, it maintains high amperage even in challenging thermal conditions, significantly reducing generator reliance.
Key Features
- Highest power output in its size/class for extreme electrical demands.
- Engineered for superior high energy production and rapid battery charging.
- Suitable for demanding Marine, RV, Military, and Commercial applications.
- Optimized for performance at idle speeds, maintaining output when needed most.
- Coolest operating temperatures achieved through advanced design for increased longevity.
- Reduces the need for a generator, simplifying vessel systems.
- E-Coat/Cerakote finish minimizes heat absorption for enhanced efficiency.
- SAE J1171 Certified for marine environment safety and compliance.
Specifications
| Product Specifications | |
|---|---|
| Voltage | 12V |
| Rotor Poles | 16 |
| Stator Size | 138mm |
| Frame Size | Large |
| Weight | 14.9 lbs |
| Regulation | Internally regulated (adaptable for external) |
| Output Voltage | 14.1v |
| Finish | Black Cerakote/E-coat |
| Cut-In Speed | 1,061 RPM |
| Max Alternator RPM | 19,000 RPM |
| Battery Post Type | M8 Side Mount |
| Pulley Type | 6-groove |
| Max Output (Cold) | 311 Amps |
| Sustained Cruising Output (Hot) | 227 Amps |
| Sustained Idle Output (Hot) | 198 Amps |
| Max Continuous Operating Temp | 110C |
| Replaces Mounting Styles | Single 1" or 2" foot |
Who This Is For
Boaters, RV owners, military, and commercial operators requiring exceptional charging capacity for large battery banks, especially in demanding conditions or at lower engine RPMs. This unit is designed for those who need reliable, high-amperage power generation to support extensive onboard electronics and systems.
How It Compares
| Feature | ARCO Zeus A275L 311A Alternator | Competitor |
|---|---|---|
| Max Output (Cold, 9,000 RPM) | 311 Amps | 270 Amps, 250 Amps |
| Sustained Cruising Output (Hot, 6,000 RPM) | 227 Amps | Approx. 200-220 Amps, Approx. 170-190 Amps |
| Sustained Idle Output (Hot, 3,000 RPM) | 198 Amps | Approx. 120-140 Amps, Approx. 100-120 Amps |
| Cooling Technology | Heat shedding coatings, Rectifier on exterior, Dual cooling fans | Standard cooling (less advanced), Standard cooling |
| Regulation | Internal/External | Internal, Internal |
| Certifications | SAE J1171 | Not specified, Not specified |
| Mounting Foot | Single 1" or 2" | Varies by model, single foot, Varies by model, single foot |
Common Concerns Answered
Is the initial cost of the ARCO Marine Zeus A275L higher than other alternators?
The ARCO Marine Zeus A275L represents a significant investment due to its advanced technology and superior output capabilities. While its initial cost may be higher than standard alternators, its ability to deliver up to 311 Amps and sustained high output at idle and cruising speeds, along with enhanced cooling, provides long-term value and reduces reliance on other charging systems.
Does this alternator require specific wiring or a regulator?
For optimal performance and safety, proper wiring is essential with high-output alternators like the ARCO Marine Zeus A275L. It features internal regulation but is adaptable for optional external regulators, allowing for tailored system integration. Consulting the installation manual and ensuring compatibility with your existing electrical system is recommended.
How does the Zeus A275L compare in terms of output and cooling?
The ARCO Marine Zeus A275L excels with its class-leading 311 Amps maximum output and a sustained hot cruising output of 227 Amps, significantly outperforming competitors. Its advanced cooling system, including heat-shedding coatings and dual fans, ensures cooler operation and sustained performance under demanding thermal conditions, unlike standard cooling systems.
Frequently Asked Questions
What is the maximum output amperage of the ARCO Marine Zeus A275L alternator?
The ARCO Marine Zeus A275L alternator offers a maximum output of 311 Amps under cold operating conditions.
What type of battery banks is this alternator suitable for?
This alternator is ideal for charging large battery banks due to its high output capabilities, supporting demanding marine, RV, military, and commercial applications.
Does the ARCO Marine Zeus A275L alternator come with a regulator?
Yes, the ARCO Marine Zeus A275L is internally regulated and also includes an adapter for optional external regulation for enhanced system customization.
What applications is the ARCO Marine Zeus A275L alternator designed for?
It is designed for high-demand applications including marine vessels, RVs, military vehicles, and commercial operations that require substantial electrical power generation.
What makes the ARCO Marine Zeus A275L alternator run cooler than others?
It features superior cooling technology including heat-shedding coatings, an exterior-mounted rectifier, and dual cooling fans to dissipate heat efficiently, resulting in cooler operating temperatures and increased performance longevity.
