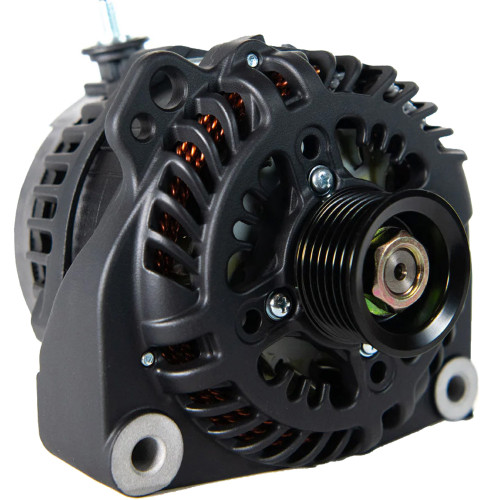

ARCO Marine Zeus A275L N62 Alternator | Boat Supply Store
For vessels requiring substantial onboard electrical capacity, the ARCO Marine Zeus A275L N62 is engineered to deliver the highest power output in its class, capable of producing 311 Amps Max Output (Cold) and a sustained 198 Amps at idle (Hot). Its advanced design incorporates a 138mm stator size and dual cooling fans for superior heat dissipation, ensuring consistent performance in demanding marine environments. This unit is particularly advantageous for owners of large battery banks or those operating power-intensive equipment, mitigating the need for auxiliary generators even at low RPM.
Key Features
- Highest Power Output in its size/class for unparalleled electrical generation
- Engineered for High Energy Production to meet the demands of modern vessels
- Rapidly Charges Large Battery Banks minimizing downtime and maximizing operational readiness
- Coolest Operating Temperatures due to advanced cooling technologies for extended lifespan and performance
- Optimized for Performance at Idle Speeds providing crucial power when maneuvering or anchored
- Reduces the Need for a Generator simplifying vessel systems and reducing maintenance
- Durable E-Coat/Cerakote Finish for sustained amperage output in harsh marine conditions
- SAE J1171 Certified for reliable and safe operation in flammable marine atmospheres
Specifications
| Product Specifications | |
|---|---|
| Voltage | 12V |
| Rotor Poles | 16 |
| Stator Size | 138mm |
| Frame Size | Large Frame |
| Weight | 14.9 lbs |
| Regulation Type | External Regulation Only (P-Type harness) |
| Output Voltage | 14.1v |
| Finish | Black Cerakote/E-coat |
| Cut-In Speed | 1,061 RPM |
| Max Alternator RPM | 19,000 RPM |
| Battery Post Size | M8 |
| Pulley Type | 49K6 6-groove |
| Pulley Shaft Size | M17 x 1.5 |
| Diode Rating | 6+6 diodes (50A rated) |
| Max Output Amperage (Cold) | 311 Amps |
| Sustained Cruising Output Amperage (Hot) | 227 Amps |
| Sustained Idle Output Amperage (Hot) | 198 Amps |
| Max Continuous Operating Temperature | 110C |
| Replaces | Mercedes Sprinter alternators |
Who This Is For
This high-output alternator is designed for boat owners and commercial fleet managers who require exceptionally reliable and powerful charging solutions for extensive battery systems or demanding onboard electronics. It is also ideal for RV and military vehicle operators needing consistent power delivery even at low engine speeds.
How It Compares
| Feature | ARCO Marine Zeus A275L N62 Alternator | PowerMax PM4600 Alternator |
|---|---|---|
| Max Output (Cold, 9,000 RPM) | 311 Amps | 270 Amps |
| Sustained Idle Output (Hot, 3,000 RPM) | 198 Amps | null |
| Cooling Technology | Heat shedding coatings, Rectifier on housing exterior, Dual cooling fans | Standard cooling |
| Regulation Type | External Only | External |
| Certifications | SAE J1171 | null |
| Made In | U.S.A. | null |
Common Concerns Answered
Will I need to buy a separate regulator for this alternator?
Yes, the ARCO Marine Zeus A275L N62 is designed exclusively for external regulation and requires a compatible external regulator, which is an additional purchase and setup requirement.
Is this alternator significantly more expensive than standard units?
While the initial investment is higher compared to standard alternators, the Zeus A275L N62 offers substantially greater output, advanced cooling, and superior durability, providing a superior long-term value for demanding applications.
How does the ARCO Marine Zeus A275L N62 handle high temperatures?
This alternator features advanced cooling technologies, including heat-shedding coatings, a rectifier mounted on the exterior of the housing, and dual cooling fans, allowing for sustained high amperage output even under extreme operating temperatures up to 110C.
Frequently Asked Questions
What is the maximum output amperage of the ARCO Marine Zeus A275L N62 Alternator?
The ARCO Marine Zeus A275L N62 Alternator delivers a maximum output of 311 Amps under cold conditions.
Does this alternator require an external regulator?
Yes, the ARCO Marine Zeus A275L N62 Alternator requires an external regulator and utilizes a P-Type harness for connection.
What applications is the ARCO Marine Zeus A275L N62 Alternator suitable for?
This alternator is highly suitable for marine, RV, military, and commercial applications demanding high power output, rapid battery charging, and consistent performance at idle speeds.
What makes this alternator run cooler than others?
It features advanced cooling technologies including heat-shedding coatings, a rectifier on the housing exterior, and dual cooling fans, which significantly improve heat dissipation compared to standard cooling systems.
Is this alternator SAE J1171 Certified?
Yes, the ARCO Marine Zeus A275L N62 Alternator is SAE J1171 Certified, ensuring safe operation in potentially flammable marine environments.
