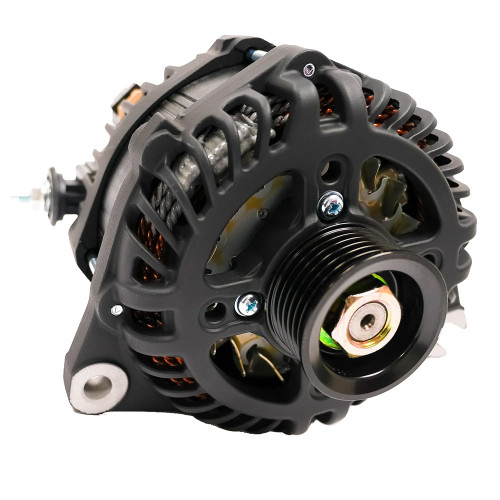

ARCO Zeus A275L Transit Alternator | Boat Supply Store
Engineered for applications demanding significant electrical power, this alternator delivers a peak 311 Amps (Cold) and sustains 198 Amps at hot idle, effectively eliminating generator reliance for large battery banks. Its robust construction features a 138mm stator size and a 16 rotor pole design for efficient energy conversion. The durable E-Coat/Cerakote finish ensures longevity and heat dissipation, making it ideal for extended offshore voyages or powering complex onboard systems in demanding marine environments.
Key Features
- Highest power output alternator in its size/class for demanding electrical loads
- Engineered for High Energy Production to rapidly recharge large battery banks
- Suitable for Marine, RV, Military, and Commercial applications
- Optimized for sustained performance at idle speeds, reducing generator dependency
- Coolest operating temperatures through advanced cooling technologies
- Durable E-Coat/Cerakote finish for enhanced heat shedding and corrosion resistance
- SAE J1171 Certified for safe operation in marine environments
- Made in the U.S.A. ensuring quality manufacturing standards
Specifications
| Product Specifications | |
|---|---|
| Voltage | 12V |
| Rotor Poles | 16 |
| Stator Size | 138mm |
| Frame Size | Large |
| Weight | 14.9 lbs |
| Regulation Type | Internal/External |
| Output Voltage | 14.1v |
| Finish | Black Cerakote/E-coat |
| Cut-In Speed | 1,061 RPM |
| Max Alternator RPM | 19,000 RPM |
| Battery Post Size | M8 |
| Pulley Type | 49K6 (6-groove, 49mm) |
| Diode Rating | 6+6 (50A each) |
| Max Output (Cold) | 311 Amps |
| Sustained Cruising Output (Hot) | 227 Amps |
| Sustained Idle Output (Hot) | 198 Amps |
| Max Continuous Operating Temperature | 110C/230F |
| Replaces Engine Type | Ford Transit 3.5L & 3.7L Gas engines 2015-2022 |
Who This Is For
Boat owners and commercial fleet managers requiring exceptional, consistent amperage output for substantial battery banks or high-demand onboard electronics. Ideal for those seeking to minimize generator runtime and ensure reliable power, even at idle.
How It Compares
| Feature | ARCO Zeus A275L Transit Alternator | Competitor |
|---|---|---|
| Max Output (Cold, 9,000 RPM) | 311 Amps | 270 Amps, 150 Amps |
| Sustained Cruising Output (Hot, 6,000 RPM) | 227 Amps | Not Specified, Not Specified |
| Sustained Idle Output (Hot, 3,000 RPM) | 198 Amps | Not Specified, Not Specified |
| Cooling Technology | Heat shedding coatings, external rectifier, dual cooling fans | Standard cooling, Standard cooling |
| Finish | Cerakote or E-coating | Standard finish, Standard finish |
| SAE J1171 Certified | Yes | Not Specified, Not Specified |
| Made in U.S.A. | Yes | Not Specified, Not Specified |
Common Concerns Answered
Why is the ARCO Marine Zeus A275L more expensive than other alternators?
The higher initial cost reflects its advanced engineering for superior power output (311A cold, 198A hot idle), specialized cooling systems, and durable Cerakote/E-coat finish, all designed for sustained high-amperage performance under extreme conditions and reduced reliance on generators.
Is this alternator difficult to install?
Installation difficulty is rated 3/5. While physical mounting is generally straightforward for compatible Ford Transit models, proper wiring of the internal or optional external regulator, especially for advanced battery systems, requires a solid understanding of automotive and marine electrical systems. Professional installation is recommended for those unfamiliar with complex electrical setups.
Users mention it charges large battery banks quickly, even at idle. How is this possible?
The Zeus A275L is engineered for high energy production and optimized for performance at idle speeds, delivering a sustained 198 Amps hot at idle. This high idle output, combined with its 311 Amp cold max output, allows it to rapidly replenish large battery banks which standard alternators cannot achieve under similar operating conditions.
Frequently Asked Questions
What is the maximum output of the ARCO Marine Zeus A275L Transit Alternator?
The ARCO Marine Zeus A275L Transit Alternator has a maximum output of 311 Amps under cold conditions and sustains 198 Amps at hot idle.
What applications is the ARCO Marine Zeus A275L Transit Alternator suitable for?
This alternator is suitable for Marine, RV, Military, and Commercial applications, particularly for those with large battery banks or a need for consistent power at idle.
How does the ARCO Marine Zeus A275L Transit Alternator improve cooling?
It utilizes heat-shedding coatings (Cerakote/E-coat), an external rectifier, and dual cooling fans to maintain cooler operating temperatures, enhancing performance and longevity, especially under sustained high-load conditions.
Can the ARCO Marine Zeus A275L Transit Alternator be used with lithium batteries?
Yes, its high and sustained output capability is beneficial for rapidly charging lithium battery banks, provided the battery's charge controller and management system are compatible with high amperage input.
What Ford Transit engines is this alternator compatible with?
This alternator is designed to replace alternators on Ford Transit vehicles equipped with 3.5L and 3.7L Gas engines from model years 2015-2022.
