Blue Sea 2340 BusBars: 100A DC Power Distribution | Boat Supply Store
This product efficiently consolidates multiple DC power connections directly at the battery terminal, providing a structured and dependable electrical system for demanding marine applications. It supports 32V DC systems and handles a continuous current of 100A DC, utilizing a C11000 tin-plated copper bus bar for superior conductivity and corrosion resistance. Ideal for managing complex accessory loads on offshore fishing vessels or coastal cruisers operating in saltwater environments.
Key Features
- Easy installation directly onto battery terminals
- Maximum 32V DC system compatibility
- 100A DC continuous current rating
- Durable tin-plated copper bus bar
- Secure #8-32 screw terminals with lock washers
- Accommodates 3/8" [M10] battery studs
- Organizes multiple power connections effectively
- Reliable power distribution for accessories
Specifications
| Product Specifications | |
|---|---|
| Maximum Voltage | 32V DC |
| Continuous Rating | 100A DC |
| Bus Material | Tin-Plated Copper C11000 |
| Mounting Hole | Clearance for 3/8 [M10] stud |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock washer |
Who This Is For
Marine enthusiasts and boat owners seeking to streamline their DC power distribution by consolidating multiple connections at the battery terminal. DIYers looking for a robust and organized solution for complex electrical systems will find this product exceptionally useful.
How It Compares
| Feature | Blue Sea 2340 BusBars: 100A DC Power Distribution | Competitor |
|---|---|---|

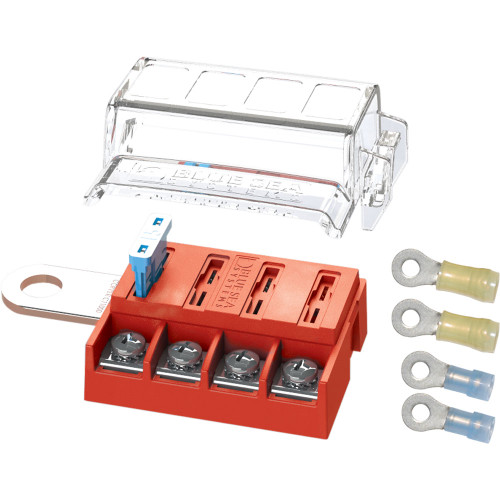

| Type | Battery Terminal Mount BusBar | Fuse Block, Battery Terminal Stud with Ring Terminals |
| Max Voltage | 32V DC | 32V DC, null |
| Continuous Amperage Rating | 100A DC | 100A total, null |
| Bus Material | Tin-Plated Copper C11000 | Tin-Plated Copper, Brass |
| Mounting Hole Size | Clearance for 3/8 [M10] stud | N/A (Mounts via screws), 3/8" stud |
Common Concerns Answered
Are the screw terminals large enough for heavy gauge wires?
The #8-32 screw terminals are designed for efficient connection of multiple smaller gauge wires, providing secure termination for the 100A DC rating. For very large gauge wires directly to the busbar, consider alternative connection methods or expander lugs if required by your specific installation.
Does this product have any California Proposition 65 warnings?
Yes, this product includes a California Proposition 65 warning. Information regarding specific substances can be found on the manufacturer's website, and while the warning is standard for many marine electrical components, it is important for buyers to be aware.
Will this busbar fit my battery terminal stud?
The mounting hole is designed with clearance for a 3/8" [M10] stud, which is a common size for marine battery terminals, ensuring a secure fit for most standard installations.
Frequently Asked Questions
What is the maximum voltage and continuous current rating for the Blue Sea 2340 BusBars?
The Blue Sea 2340 BusBars are rated for a maximum voltage of 32V DC and a continuous current rating of 100A DC.
What type of bus material is used in the Blue Sea 2340 BusBars?
The Blue Sea 2340 BusBars utilize a C11000 tin-plated copper bus bar for optimal conductivity and corrosion resistance in marine environments.
What size stud does the mounting hole accommodate?
The mounting hole on the Blue Sea 2340 BusBars provides clearance for a 3/8" [M10] stud.
What type of screw terminals are used for connections?
Connections are made via #8-32 screws, which come equipped with captive star lock washers to ensure a secure and reliable connection.
Does this product comply with California Proposition 65?
Yes, the product is accompanied by a California Proposition 65 warning.
