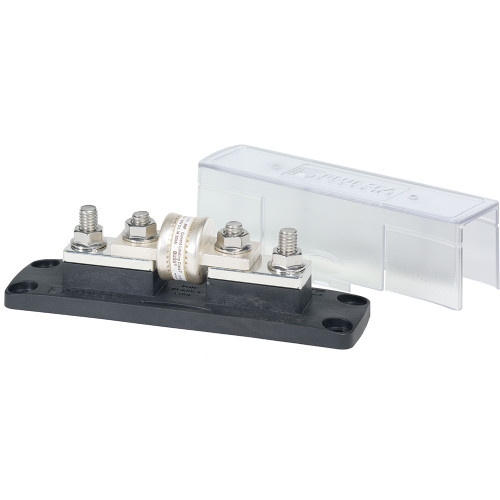

Blue Sea Class T Fuse Block 225-400A | Boat Supply Store
For vessels demanding robust protection for high-amperage DC systems, particularly inverters and sensitive electronics, this Blue Sea Systems Class T fuse block delivers exceptional safety. It is rated up to 320A continuous, with a maximum voltage of 160V DC, ensuring reliable overcurrent protection. The ignition-protected design and UL 94-V0 rated base make it suitable for engine room installations on vessels operating in challenging marine environments.
Key Features
- Superior Class T fuse accommodation for fast-acting circuit interruption.
- Meets ABYC/USCG requirements with included insulating cover.
- Facilitates easy lug connection via a four-stud terminal design.
- Provides versatile wire routing through cover breakouts.
- Ensures secure fuse retention with a robust mounting system.
- Maintains connection integrity with corrosion-resistant stainless steel studs.
- Achieves high-torque, secure connections using one-piece stainless flange nuts.
- Offers superior heat resistance with a UL 94-V0 rated base.
Specifications
| Product Specifications | |
|---|---|
| Class | Class T Fuse Block with Insulating Cover |
| Amperage Rating | 225 to 400A |
| Maximum Amperage | 320A |
| Maximum Voltage | 160V DC |
| Cable Size Accommodated | Up to 4/0 AWG |
| Terminal Stud Size | 5/16"-18 (M8) |
| Ignition Protected | Yes |
| Base Material Rating | UL 94-V0 |
Who This Is For
Marine electricians and boat builders requiring dependable circuit protection for high-amperage DC systems, as well as DIY boat owners undertaking substantial electrical upgrades on vessels.
How It Compares
| Feature | Blue Sea Class T Fuse Block 225-400A | Blue Sea Systems 5191 ST Blade Fuse Block |
|---|---|---|
| Maximum Amperage | 320A | 30A per circuit |
| Maximum Voltage | 160V DC | 32V DC |
| Fuse Type | Class T | ATO/ATC Blade |
| Ignition Protected | Yes | Yes |
| Cable Size | Up to 4/0 AWG | Up to 10 AWG |
| Insulating Cover | Yes | Yes |
Common Concerns Answered
Why is this fuse block more expensive than smaller amperage options?
The higher price point reflects the robust construction, specialized Class T fuse compatibility, and higher amperage/voltage ratings necessary for demanding marine applications. This unit is engineered for superior safety and reliability where lower-rated blocks would be insufficient and potentially hazardous.
Are Class T fuses readily available and are they expensive?
Class T fuses are specifically designed for high-amperage, high-speed interruption and are a superior choice for protecting sensitive electronics like inverters. While they may have a higher initial cost than standard fuses, their performance and safety benefits in critical systems justify the investment for discerning boaters.
Is the higher cost of this fuse block justified for my boat?
This fuse block is essential for systems exceeding 200A or requiring fast-acting protection for sensitive electronics. If your vessel's electrical demands, such as large inverters or multiple high-draw equipment, fall within its 225-400A range and 160V DC capacity, the advanced safety and reliability it provides are critical investments.
Frequently Asked Questions
What type of fuse does the Blue Sea 5502100 Class T Fuse Block use?
The Blue Sea 5502100 Class T Fuse Block utilizes Class T fuses, which are designed for very fast-acting overcurrent protection and high interrupting capacity.
What is the maximum amperage rating for the Blue Sea 5502100 Class T Fuse Block?
The Blue Sea 5502100 Class T Fuse Block has a maximum continuous amperage rating of 320A, with an overall fuse rating range of 225 to 400A.
What is the maximum voltage rating for the Blue Sea 5502100 Class T Fuse Block?
The maximum voltage rating for the Blue Sea 5502100 Class T Fuse Block is 160V DC.
Can the Blue Sea 5502100 Class T Fuse Block be used for ignition-protected applications?
Yes, the Blue Sea 5502100 Class T Fuse Block is ignition protected, making it safe for use in potentially explosive atmospheres, such as engine rooms.
What cable size can be used with the Blue Sea 5502100 Class T Fuse Block?
The Blue Sea 5502100 Class T Fuse Block accommodates cable sizes up to 4/0 AWG, ensuring compatibility with heavy-gauge marine wiring.
