Blue Sea 6005 Battery Switch | Boat Supply Store
Safeguard your vessel's electrical system from potential ignition sources with this marine-grade battery switch. It features robust 3/8-16 tin-plated copper studs, ensuring superior conductivity and corrosion resistance even in harsh marine environments. The reinforced polycarbonate construction provides durability, while ignition protection makes it a critical component for gasoline-powered boats operating on the Texas coast.
Key Features
- Ignition Protected for safe use on gasoline-powered vessels.
- Single Circuit ON/OFF for straightforward battery management.
- Multiple Mounting Options accommodate surface, front, or rear panel installation.
- Corrosion-Resistant Studs feature 3/8-16 tin-plated copper for reliable connections.
- Durable Construction utilizes a reinforced polycarbonate case for longevity.
- Tactile Knob Positions offer clear, unambiguous operational feedback.
- Included Label Set aids in identifying circuit configurations.
- Isolated Cover protects contacts from accidental shorting.
Specifications
| Product Specifications | |
|---|---|
| Circuit Type | Single Circuit ON/OFF |
| Ignition Protected | Yes |
| Mounting | Surface/Front/Rear Panel |
| Stud Size | 3/8"-16 |
| Stud Length | 7/8" |
| Case Material | Reinforced Polycarbonate |
| Terminal Type | Accepts 3/8" and M10 ring terminals |
| Included Accessories | ICON Label Set |
Who This Is For
This switch is ideal for boat owners and DIYers requiring a dependable method to manage a single battery circuit for essential loads, particularly on gasoline-powered vessels. It's suited for those prioritizing safety, robust construction, and easy installation in demanding marine conditions.
How It Compares

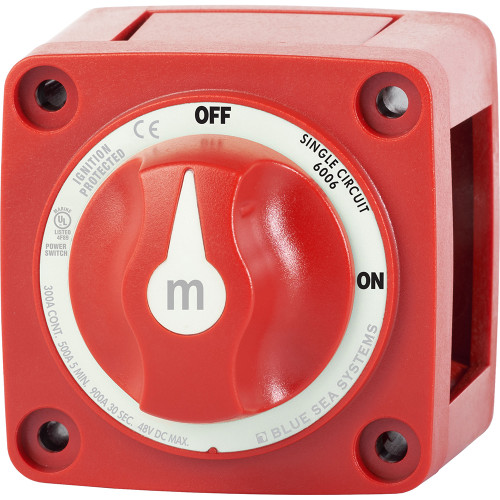

| Feature | Blue Sea 6005 Battery Switch | Blue Sea Systems 6006 m |
|---|---|---|
| Circuit Type | Single Circuit ON/OFF | Single Circuit ON/OFF |
| Ignition Protected | Yes | Yes |
| Stud Size | 3/8"-16 | 3/8"-16 |
| Continuous Rating | null | 300A |
| Mounting Options | Surface, Front Panel, Rear Panel | Surface, Front Panel, Rear Panel |
Common Concerns Answered
Will the stud length accommodate multiple large ring terminals?
While the 7/8" stud length is suitable for most standard installations, users with numerous or particularly thick ring terminals may find it slightly short. Consider assessing your cable terminal size and quantity beforehand.
Is the 'mini' size sufficient for high-demand electrical systems?
The 'mini' designation refers to its compact form factor. For applications with extremely high continuous or intermittent current demands exceeding the switch's rating, a larger capacity switch may be necessary. Always verify the continuous rating against your system's requirements.
Can I use this on a gasoline-powered boat?
Absolutely. The Blue Sea 6005 is ignition protected, a critical safety feature that prevents the switch from creating sparks that could ignite fuel vapors, making it ideal for gasoline-powered vessels.
Frequently Asked Questions
What is the maximum continuous rating for the Blue Sea 6005 m-Series battery switch?
The Blue Sea 6005 m-Series battery switch has a continuous rating of 100A and an intermittent rating of 150A. It is designed for managing single circuits effectively within these parameters.
Can this battery switch be used on a gasoline-powered boat?
Yes, the Blue Sea 6005 is ignition protected, making it safe and compliant for use on gasoline-powered boats where ignition hazards are a concern.
What size ring terminals can be used with the Blue Sea 6005 switch?
The 3/8"-16 tin-plated copper studs accept both 3/8" and M10 ring terminals. The 7/8" stud length provides space for multiple terminals, depending on their thickness.
How is the Blue Sea 6005 switch mounted?
The Blue Sea 6005 offers versatile mounting options including surface mounting, front panel mounting, and rear panel mounting, allowing for flexible installation in various marine electrical panels or bulkheads.
What is the purpose of the isolating cover on this battery switch?
The included isolating cover features snap-on sections designed to protect the switch's electrical contacts from accidental short circuits and environmental contaminants, enhancing overall safety and longevity.
