Description

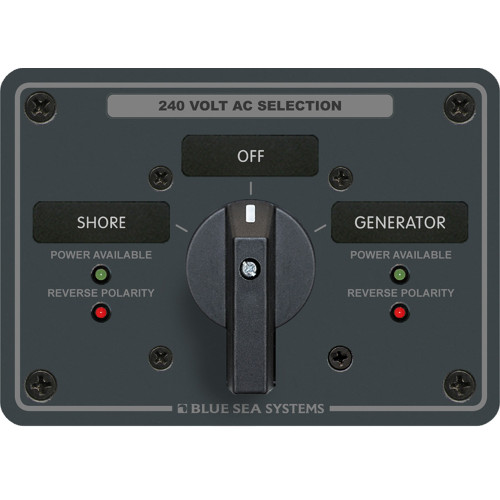

Blue Sea 8361 AC Rotary Switch Panel 65A 3-Pole | Boat Supply Store
Ideal for vessels requiring selection between multiple 230V AC power sources, this panel simplifies power management where individual circuit protection is handled externally. It features a heavy-duty industrial-rated 9011 switch capable of 65 Ampere continuous duty. The robust 1/8" aluminum 5052 alloy construction ensures durability for offshore operations, while integrated LED indicators clearly display power availability and reverse polarity status.
Key Features
- 3-pole, 3-position + OFF rotary switching for versatile AC source selection.
- 65 Ampere continuous rating handles significant AC loads for auxiliary systems.
- 120/240v AC voltage compatibility supports standard marine electrical configurations.
- Heavy-duty industrial rated 9011 switch ensures long-term reliability and performance.
- Durable 1/8" aluminum 5052 alloy construction provides superior corrosion resistance.
- Clear LED indicators for green power availability and red reverse polarity status.
- Compact design minimizes space utilization, assuming external circuit protection.
- Professional slate gray finish integrates seamlessly with high-end marine electrical installations.
Specifications
| Product Specifications | |
|---|---|
| Brand | Blue Sea Systems |
| Product Name | AC Rotary Switch Panel |
| Model | 8361 |
| Amperage Rating | 65 Ampere |
| Positions | 3 Positions + OFF |
| Poles | 3 Pole |
| Voltage Compatibility | 120/240v AC |
| Switch Type | 9011 Heavy Duty Industrial Rated |
| Construction Material | 1/8" Aluminum 5052 Alloy |
| Finish | Two-part polyurethane slate gray |
| LED Indicators | Red Reverse Polarity, Green Power Available |
Who This Is For
Marine electricians and boat owners installing or upgrading electrical systems on vessels with multiple 230-volt AC sources. This panel is for users who prefer to manage circuit protection through separate devices, valuing a dedicated and robust power selection interface.
How It Compares
| Feature | Blue Sea 8361 AC Rotary Switch Panel 65A 3-Pole | Competitor |
|---|---|---|
| Amperage Rating | 65 Ampere | Varies by model |
| Positions | 3 + OFF | Varies by model |
| Poles | 3 | Varies by model |
| Voltage | 120/240v | Varies by model |
| Switch Type | Heavy Duty Industrial Rated 9011 | Circuit Breakers |
| Construction Material | 1/8" Aluminum 5052 Alloy | Typically less capable |
| LED Indicators | Reverse Polarity (Red), Power Available (Green) | Typically less capable |
| Circuit Protection | Assumes external protection | Integrated circuit breakers |
Common Concerns Answered
What is the primary drawback of the Blue Sea 8361 AC Rotary Switch Panel?
This panel requires separate circuit protection, which adds to the overall installation complexity and cost compared to integrated solutions.
Why might the Blue Sea 8361 AC Rotary Switch Panel be a higher investment than some alternatives?
Its robust, industrial-grade construction and specialized functionality for managing multiple AC sources contribute to its price point, which can be higher than simpler single-source switches.
Will I need additional components to make this switch operational?
Yes, this panel is designed to be used in conjunction with separate circuit protection devices, such as circuit breakers or fuses, to ensure system safety.
Frequently Asked Questions
What is the maximum amperage this Blue Sea 8361 AC Rotary Switch Panel can handle?
The Blue Sea 8361 AC Rotary Switch Panel is rated to handle a maximum of 65 Amperes continuously.
How many positions does the Blue Sea 8361 AC Rotary Switch Panel have?
The Blue Sea 8361 AC Rotary Switch Panel features 3 positions plus an OFF position, allowing for selection between three distinct AC sources.
What voltage is compatible with the Blue Sea 8361 AC Rotary Switch Panel?
This panel is compatible with both 120V and 240V AC systems.
What type of switch is included with the Blue Sea 8361 AC Rotary Switch Panel?
The panel includes a heavy-duty, industrial-rated 9011 rotary switch.
What are the LED indicators on the Blue Sea 8361 AC Rotary Switch Panel for?
The panel features a red LED indicator for reverse polarity detection and a green LED indicator to confirm power availability from the selected source.
