Blue Sea Cable Entry Clam w/ SS Cap | Boat Supply Store

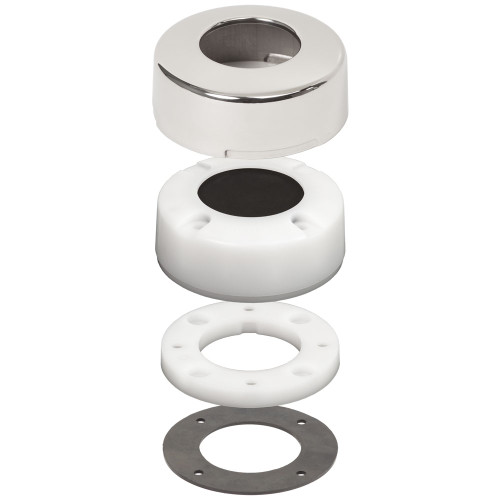

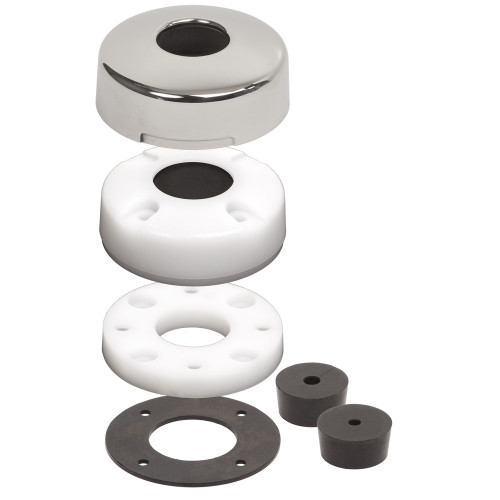

Prevent hull breaches with the Blue Sea Side Entry CableClam, engineered for a clean, waterproof routing of antenna cables above the waterline without necessitating connector removal. This unit accepts cables up to 0.28 inches (7.11 mm) in diameter, featuring a corrosion-resistant 316 stainless steel dress cap that conceals fasteners and complements existing deck hardware. Its UV-stabilized thermoplastic ring and Buna-N rubber seal ensure long-term durability in harsh marine environments, offering a streamlined solution for vessels operating in coastal waters or the open ocean.
Key Features
- Waterproof side entry for antenna cables, eliminating connector removal.
- Aesthetically pleasing 316 stainless steel dress cap conceals mounting hardware.
- Low-profile contoured edge minimizes snagging of lines or fishing gear.
- Simple one-piece design for straightforward side-mount installations.
- Durable UV-stabilized thermoplastic ring and Buna-N rubber seal withstand marine conditions.
- Compact dimensions suitable for tight deck spaces on center consoles or sailboats.
- Effective cable management solution for radar or GPS antenna feeds.
- Includes all necessary fasteners for a complete installation.
Specifications
| Product Specifications | |
|---|---|
| Max Cable Diameter | 0.28in (7.11 mm) |
| Max Connector Diameter | 1in (25.4 mm) |
| Dress Cap Material | 316 Stainless Steel |
| Ring Material | UV-Stabilized Thermoplastic |
| Seal Material | UV-Stabilized Buna-N Rubber |
| Weight | 0.50lb (0.23 kg) |
| Usage | For above waterline use only |
Who This Is For
Boat owners and marine technicians requiring a visually appealing and watertight method for routing antenna cables through the hull above the waterline. This product is ideal when factory-installed connectors cannot be disassembled, ensuring a professional and secure finish.
How It Compares
| Feature | Blue Sea Cable Entry Clam w/ SS Cap | Scanstrut DS3 |
|---|---|---|
| Max Cable Diameter | 0.28in (7.11 mm) | — |
| Dress Cap Material | 316 Stainless Steel | None specified |
| Primary Function | Waterproof side cable entry with concealed hardware | Waterproof cable entry |
Common Concerns Answered
Will this fit my larger diameter antenna cable connector?
The CableClam is designed for cables with a maximum diameter of 0.28 inches (7.11 mm), and may present fitting challenges if the connector itself, even if the cable is within spec, exceeds 1 inch (25.4 mm). Careful measurement of your cable and connector is advised before purchase.
Can I use this CableClam for cables running below the waterline?
No, this specific model is rated and designed strictly for above waterline applications. Using it underwater will compromise its sealing integrity and potentially lead to water ingress.
How do I ensure a truly watertight seal with this product?
Achieving a reliable watertight seal requires meticulous installation. Ensure the mounting surface is clean and smooth, and apply a suitable marine-grade sealant generously around the base of the unit before securing it, especially around any fastener holes.
Frequently Asked Questions
What is the maximum cable diameter this CableClam can accommodate?
The Blue Sea Side Entry CableClam accommodates cables with a maximum diameter of 0.28 inches (7.11 mm).
Can this CableClam be used for underwater applications?
No, this CableClam is specifically designed and rated for above waterline use only.
What material is the dress cap made of?
The dress cap is constructed from premium 316 Stainless Steel, offering excellent corrosion resistance.
Does this product come with mounting hardware?
Yes, the Blue Sea Side Entry CableClam includes all necessary fasteners for installation.
What is the purpose of the stainless steel dress cap?
The stainless steel dress cap serves to conceal the mounting hardware, providing a clean, finished appearance that complements existing deck fittings while adding a premium aesthetic.
