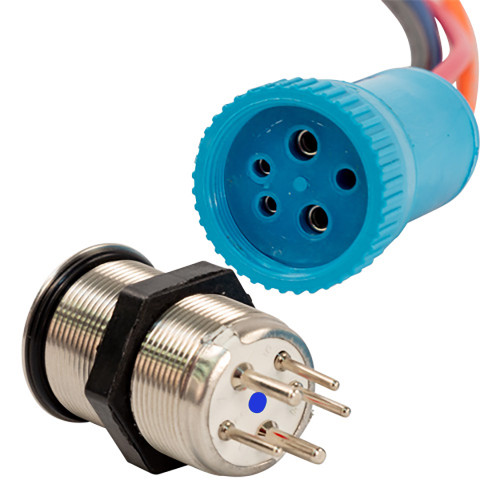

Bluewater 22mm Push Button Switch IP69K LED | Boat Supply Store
Ensure reliable operation of your vessel's critical systems with a switch built for harsh marine environments. This 22mm push-button unit boasts an exceptional IP69K waterproof rating, protecting its internal components from high-pressure water ingress, ideal for coastal cruising or offshore angling. Rated for 20A at 12-24VDC and offering 50,000 mechanical cycles, it provides a robust solution for controlling pumps, lights, or electronics. The integrated blue and red LEDs offer clear visual feedback, illuminating ambiently and indicating ON status, crucial for immediate system awareness on deck.
Key Features
- Durable 22mm stainless steel plated metal button construction.
- Reliable Standard Off/On contact configuration.
- Superior Waterproofing IP69K rating for extreme marine conditions.
- Enhanced Visibility Blue LED backlight for easy location.
- Clear Status Red LED indicator confirms active function.
- Extended Reach Convenient 4 ft. lead wire included.
- High Capacity Handles 20A at 12-24VDC.
- Long Lifespan Rated for 50,000 mechanical and 10,000 electrical cycles.
Specifications
| Product Specifications | |
|---|---|
| Actuation Type | Push Button |
| Contact Type | Off/On |
| LED Colors | Blue/Red |
| Lead Wire Length | 4' |
| Button Material | Stainless steel plated metal |
| Waterproof Rating | IP69K |
| Voltage Rating | 12-24VDC |
| Amperage Rating | 20A |
| Mechanical Cycles | 50,000 |
| Electrical Cycles | 10,000 |
| Required Hole Size | 22mm |
| Panel Thickness Compatibility | Up to 6mm |
Who This Is For
Marine technicians and boat owners seeking to install or replace electrical switches with a component that offers superior durability and visual confirmation. DIY enthusiasts will find this switch ideal for upgrades requiring a robust, waterproof solution with clear operational feedback.
How It Compares
| Feature | Bluewater 22mm Push Button Switch IP69K LED | Competitor |
|---|---|---|
| Actuation Type | Push Button | Rocker, Push Button |
| Waterproof Rating | IP69K | IP67, IP67 |
| LED Illumination | Blue (backlight) / Red (ON indicator) | Single color or None, Single color or None |
| Amperage Rating | 20A | 15A, 10A |
| Material | Stainless steel plated metal | Plastic, Plastic |
| Hole Size | 22mm | Varies by model, Varies by model |
Common Concerns Answered
Is the lead wire long enough for my installation?
This switch includes a 4-foot lead wire, which is sufficient for many standard installations. For extended runs or complex wiring configurations, consider using appropriate marine-grade extension wiring and connectors.
Is this switch worth the investment compared to cheaper alternatives?
The Bluewater 22mm Push Button Switch offers a premium stainless steel aesthetic combined with an IP69K waterproof rating and dual-color LED indicators, justifying its price point through superior durability and functionality in harsh marine environments.
Will this switch withstand saltwater and extreme weather?
Absolutely. The IP69K waterproof rating signifies protection against high-pressure, high-temperature water jets, making it exceptionally resilient to saltwater spray, washdowns, and direct exposure to the elements common on marine vessels.
Frequently Asked Questions
What is the IP rating of the Bluewater 22mm Push Button Switch?
The Bluewater 22mm Push Button Switch features an IP69K waterproof rating, offering the highest level of protection against dust and water ingress.
What type of contact does the Bluewater 22mm Push Button Switch have?
This switch utilizes a standard Off/On contact configuration, allowing for simple circuit control.
What are the LED colors for the Bluewater 22mm Push Button Switch?
The switch includes a blue LED for ambient backlighting and a red LED that illuminates to indicate when the function is ON.
What is the voltage and amperage rating for this switch?
The Bluewater 22mm Push Button Switch is rated for 12-24VDC and can handle up to 20A.
What size hole is required for installation?
A 22mm diameter hole is required for the installation of this switch, accommodating panel thicknesses up to 6mm.
