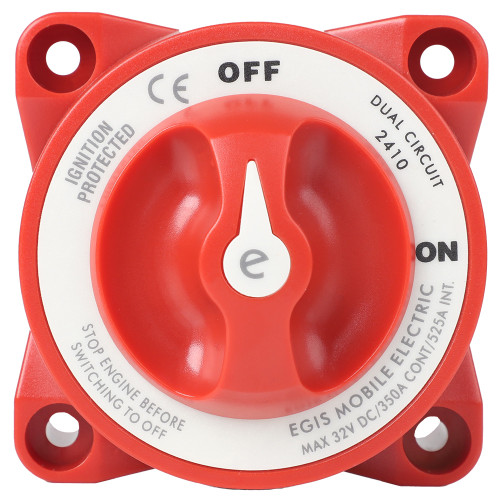

Egis 350A Battery Switch | Boat Supply Store
Engineered for the rigors of saltwater environments, this Egis E-Series 350A Battery Switch ensures secure and reliable electrical isolation. Its robust design features ignition protection per SAE J1171 and ISO 8846 standards, crucial for preventing accidental ignition in fuel-rich atmospheres common on offshore fishing vessels. With 3/8"-16 studs accepting up to M10 ring terminals and a maximum rating of 48 Vdc for single circuits, it provides robust control over your vessel's primary power source.
Key Features
- Superior Protection sealed against dust and water intrusion for longevity.
- Ignition Safety ignition protected (SAE J1171 / ISO 8846) for hazardous environments.
- Vibration Resistance serrated flange lock nuts prevent loosening in high-vibration applications.
- Harsh Environment Design constructed with stainless steel hardware for maximum durability.
- Flexible Mounting adaptable to various panel configurations.
- High Amperage 350A continuous rating handles demanding electrical loads.
- Universal Stud Size 3/8"-16 studs accommodate common ring terminals.
- Reliable Operation designed for consistent performance in marine settings.
Specifications
| Product Specifications | |
|---|---|
| Maximum Voltage (Single Circuit) | 48 Vdc |
| Maximum Voltage (Selector/Dual Circuit) | 32 Vdc |
| Stud Size | 3/8"-16 |
| Recommended Torque | 140 in-lbs (15.8 N-m) |
| Ring Terminal Acceptance | 3/8" (M10) |
| Ignition Protection | SAE J1171 / ISO 8846 |
| Panel Cutout Diameter | 3-5/8" |
| Continuous Amperage Rating | 350A |
| Live Switching Rating | 25 Amps |
| Hardware Material | Stainless Steel |
Who This Is For
Marine enthusiasts and boat owners requiring a dependable, safety-certified battery management solution for challenging marine environments. This switch is ideal for vessels operating in potentially explosive atmospheres or experiencing significant hull vibration.
How It Compares
| Feature | Egis 350A Battery Switch | Competitor |
|---|---|---|
| Continuous Amperage Rating | 350A | 300A, 350A |
| Maximum Voltage (Single Circuit) | 48 Vdc | 32 Vdc, 32 Vdc |
| Ignition Protected | Yes (SAE J1171 / ISO 8846) | Yes, Yes |
| Sealed Against Dust & Water | Yes | Yes, Yes |
| Stud Size And Thread | 3/8"-16 | 3/8"-16, 3/8"-16 |
Common Concerns Answered
Is the initial cost higher than basic battery switches?
While the Egis E-Series 350A Battery Switch may have a higher initial investment compared to simpler alternatives, its advanced features like ignition protection, superior sealing, and robust construction offer enhanced safety and long-term reliability in demanding marine applications, justifying the cost for critical systems.
Are replacement parts readily available?
Specific replacement parts for high-performance marine electrical components like the Egis E-Series are typically managed through authorized distributors. For any specific needs, contacting BoatSupplyStore.com directly ensures access to genuine parts and technical support.
What if I need more technical documentation or support?
BoatSupplyStore.com provides comprehensive product details. For in-depth technical support or specific documentation beyond what is listed, our expert marine technicians are available to assist with installation and operational queries.
Frequently Asked Questions
What is the maximum voltage for the Egis E-Series 350A Battery Switch?
The Egis E-Series 350A Battery Switch supports a maximum voltage of 48 Vdc for single circuits and 32 Vdc for selector/dual circuits.
Is the Egis E-Series 350A Battery Switch ignition protected?
Yes, the Egis E-Series 350A Battery Switch is ignition protected and certified to SAE J1171 and ISO 8846 standards, making it safe for use in potentially explosive marine environments.
What is the stud size and thread for the Egis E-Series 350A Battery Switch?
The battery switch features 3/8"-16 studs for secure connection of ring terminals.
What is the recommended torque for the terminal studs on the Egis E-Series 350A Battery Switch?
The recommended torque for the 3/8"-16 terminal studs is 140 in-lbs (15.8 N-m) to ensure a secure electrical connection without over-tightening.
What is the live switching rating of the Egis E-Series 350A Battery Switch?
The Egis E-Series 350A Battery Switch has a live switching rating of 25 Amps.
