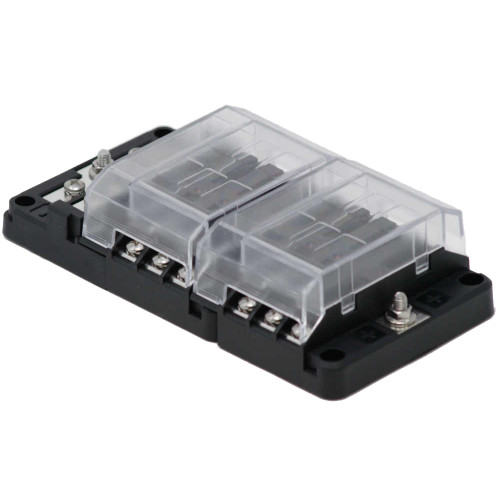

Egis RT 12-Pos Fuse Block w/LEDs | Boat Supply Store
Eliminate guesswork in your vessel's DC electrical system with the Egis RT 12-Position Fuse Block, engineered for rapid fault identification and high-reliability power distribution. This block handles a 100A max block current and 30A max per circuit, utilizing standard ATO/ATC/ATF fuses for broad compatibility. Its integrated LED indicators illuminate directly on the affected circuit when a fuse blows, drastically reducing diagnostic time for marine electricians and DIY boat owners alike, especially during critical offshore operations or refits on offshore fishing platforms.
Key Features
- Rapid Diagnostic: Integrated LEDs instantly pinpoint blown fuses, minimizing downtime.
- Extensive Capacity: Accommodates 12 ATO/ATC/ATF fuses for comprehensive circuit protection.
- High Current Handling: Supports up to 100A total block current and 30A per individual circuit.
- Marine-Grade Durability: Built with high-temperature, corrosion-resistant materials for harsh environments.
- Simplified Wiring: Accepts up to #10 AWG output wire for robust connections.
- Modular Configuration: Design allows for flexible multiple mounting arrangements.
- Integrated Storage: Includes spare fuse locations for immediate replacements.
- Secure Fastening: Features stainless steel, self-locking hardware for a vibration-resistant installation.
Specifications
| Product Specifications | |
|---|---|
| Fuse Positions | 12 |
| Fuse Type | ATO/ATC/ATF |
| Max Block Current | 100A |
| Max Current Per Circuit | 30A |
| Max Output Wire Size | #10 AWG |
| Voltage Range | 12-24 VDC |
| Indication | LED blown fuse indication |
| Additional Features | Spare fuse locations, Stainless steel hardware |
Who This Is For
Marine electricians and boat builders seeking a superior electrical distribution solution will appreciate its advanced diagnostics and robust construction. DIY boat owners can also leverage this block for reliable and easily troubleshootable power systems on their vessels.
How It Compares
| Feature | Egis RT 12-Pos Fuse Block w/LEDs | Blue Sea Systems ST Blade Fuse Block 5025 |
|---|---|---|
| Number of Fuse Positions | 12 | 6 |
| LED Blown Fuse Indication | Yes | No |
| Max Current (Per Circuit) Amps | 30 | 30 |
| Max Output Wire Size | #10 AWG | #8 AWG |
| Voltage Range VDC | 12-24 | 12-48 |
Common Concerns Answered
Is this fuse block more expensive than standard options?
While the initial investment for the Egis RT Fuse Block may be higher than basic fuse blocks, its advanced LED diagnostic capabilities and superior build quality translate to significant long-term savings by reducing troubleshooting time and minimizing costly electrical downtime.
Is it difficult to find the right fuse block configuration?
The Egis RT Fuse Block offers a modular design, but for optimal system integration, it's recommended to plan your specific circuit requirements in advance. This ensures efficient utilization of its 12 positions and maximizes the benefit of its advanced features.
What do customers like most about this fuse block?
Customers consistently praise the Egis RT Fuse Block for its intuitive diagnostic LEDs, which dramatically simplify troubleshooting, and its exceptionally robust construction, providing confidence in its longevity within demanding marine environments.
Frequently Asked Questions
What type of fuses does the Egis RT Fuse Block 12 Position w/LED Indication use?
The Egis RT Fuse Block is designed to accept standard ATO, ATC, and ATF blade-type fuses.
What is the maximum current rating for the Egis RT Fuse Block?
The Egis RT Fuse Block has a maximum total block current rating of 100A and a maximum rating of 30A per individual circuit.
How does the LED indication on the Egis RT Fuse Block help with troubleshooting?
Each circuit on the Egis RT Fuse Block is equipped with an LED that illuminates when the fuse for that circuit has blown, providing an immediate visual indicator of the fault and drastically reducing the time required to diagnose and repair electrical issues.
Can the Egis RT Fuse Block be used in harsh environments?
Yes, the Egis RT Fuse Block is constructed with bullet-proof, high-temperature materials and features stainless steel hardware, making it exceptionally resistant to corrosion and suitable for challenging marine environments.
What are the different configurations possible with the Egis RT Fuse Block?
The modular design of the Egis RT Fuse Block allows for various physical mounting configurations, and its 12 positions can be wired according to your vessel's specific electrical distribution needs for different accessories and systems.
