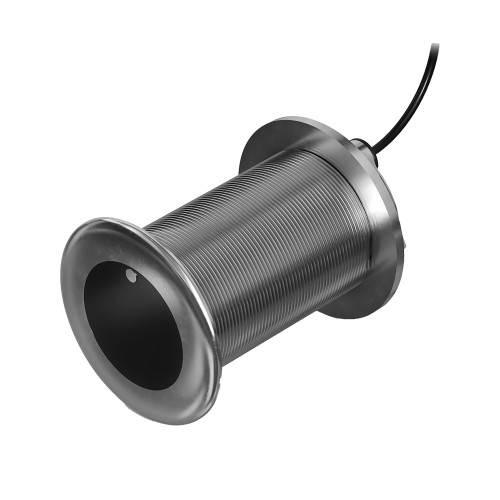

Garmin GT15M-THF 600W CHIRP Transducer | Boat Supply Store
For midsize vessels demanding precise underwater imaging, this flush-mounted, 600W mid-band CHIRP transducer provides exceptional target separation and sensitivity across its 85-165 kHz frequency range. Its robust stainless steel construction ensures durability while minimizing drag, offering optimal sonar performance up to 1200 feet in saltwater or 1900 feet in freshwater. Ideal for anglers targeting structure or fish arches in bays like Corpus Christi Bay, it reliably delivers depth and temperature data.
Key Features
- Superior Target Separation with mid-band CHIRP sonar
- 600W Power Output for deep water penetration
- Broad Frequency Range of 85–165 kHz for versatile detection
- 1200' Saltwater / 1900' Freshwater Depth capability
- 24-16 Degree Beam Width for wide coverage
- Flush-Mounted Stainless Steel Housing reduces drag and ensures durability
- Auto-ID Technology for simplified plug-and-play installation
- Supports Hull Deadrise Angles from 16 to 24 degrees
Specifications
| Product Specifications | |
|---|---|
| Power Output | 600W |
| Frequency | 85-165 kHz |
| Beam Width | 24-16 degrees |
| Max Depth (Saltwater) | 1200 ft |
| Max Depth (Freshwater) | 1900 ft |
| Housing Material | Stainless steel |
| Mounting Type | Thru-Hull |
| Deadrise Support | 16-24 degrees |
| Connector | 8-pin |
| Features | Auto-ID, Depth and Temperature |
| Sonar Type | Mid-band CHIRP Traditional Sonar |
Who This Is For
Midsize fishing and cruising boat owners seeking enhanced sonar performance for clear fish arch definition, structure identification, and accurate depth readings in both saltwater and freshwater environments. This transducer is designed to improve underwater visibility on vessels where a flush-mount, low-drag solution is preferred.
How It Compares
| Feature | Garmin GT15M-THF 600W CHIRP Transducer | CHIRP |
|---|---|---|
| Transducer Type | Mid-band CHIRP | Dual Frequency (50/200 kHz), StructureScan / CHIRP |
| Power Output | 600 W | 1000 W, N/A (StructureScan) / 250W |
| Max Depth (Saltwater) | 1200 Ft | — |
| Beam Width | 24-16 degrees | 19° @ 50 kHz; 4.5° @ 200 kHz, Varies by frequency |
| Housing Material | Stainless steel | Bronze, Plastic |
| Mounting Type | Thru-Hull | Thru-Hull, Transom Mount |
Common Concerns Answered
Will the 20-degree tilt work on my high deadrise hull?
The Garmin GT15M-THF is designed for deadrise angles from 16 to 24 degrees. For very high deadrise hulls exceeding this range, a fairing block may be required to achieve optimal performance and proper angling.
Is installation complex?
Installation requires drilling through the hull, rated at a 3/5 difficulty. While the flush-mount design simplifies alignment and reduces drag, precise sealing and placement are critical. Professional installation is recommended for boaters unfamiliar with hull penetrations to ensure watertight integrity and optimal sonar readings.
Can I get the best performance without professional installation?
While DIY installation is possible, users report that optimal performance hinges on proper installation alignment. Ensuring the transducer is perfectly oriented within the hull's flow line is crucial for accurate readings and minimal drag. Deviations can lead to performance degradation.
Frequently Asked Questions
What is the maximum depth capability of the Garmin GT15M-THF transducer?
The Garmin GT15M-THF transducer is capable of reaching depths of 1200 feet in saltwater and 1900 feet in freshwater.
What type of sonar does the Garmin GT15M-THF transducer use?
This transducer utilizes mid-band CHIRP traditional sonar technology.
What is the beam width of the Garmin GT15M-THF transducer?
The beam width of the Garmin GT15M-THF transducer ranges from 24 degrees at its highest frequency to 16 degrees at its lowest frequency.
What is the power output of the Garmin GT15M-THF transducer?
The Garmin GT15M-THF transducer has a power output of 600 watts.
What hull deadrise angles is the Garmin GT15M-THF transducer compatible with?
The Garmin GT15M-THF transducer is designed to support hull deadrise angles ranging from 16 to 24 degrees.
