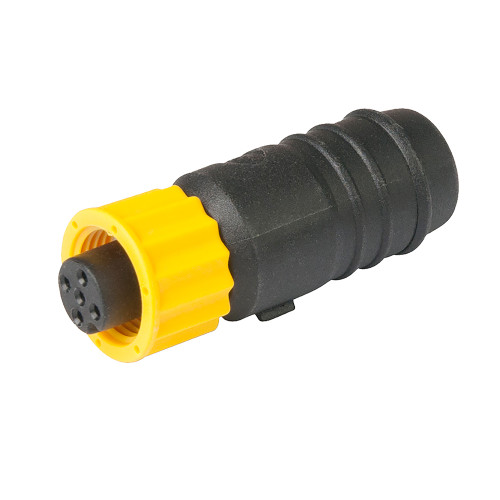

Garmin NMEA 2000 Terminator (Female) | Boat Supply Store
Proper termination of your NMEA 2000 network is paramount to prevent signal reflections and ensure reliable data communication between devices. This Garmin NMEA 2000 Terminator, featuring a female connector and adhering to NMEA 2000 certification standards, is specifically engineered to terminate the unused end of an NMEA 2000 backbone cable. Utilizing this component is critical for maintaining network stability, particularly on complex systems aboard vessels operating in the Gulf of Mexico where robust data transfer is essential for navigation and sensor data.
Key Features
- Essential for maintaining NMEA 2000 network stability and preventing signal errors.
- Certified to NMEA 2000 standards for assured compatibility and performance.
- Female connector design for specific backbone termination points.
- Garmin-engineered for superior reliability within Garmin marine electronics ecosystems.
- Ensures signal integrity by preventing signal reflections at the end of the backbone.
- Durable construction built to withstand harsh marine environments.
- Simple screw-on installation requiring no specialized tools.
- Compact design minimizes network clutter.
Specifications
| Product Specifications | |
|---|---|
| Connector Type | Female |
| MPN | 010-11081-00 |
| NMEA 2000 Certified | Yes |
Who This Is For
Ideal for marine electronics installers and boat owners actively configuring or expanding NMEA 2000 networks. Technicians will find this a critical component for finalizing network architecture.
How It Compares
| Feature | Garmin NMEA 2000 Terminator (Female) | Female |
|---|---|---|
| Connector Type | Female | — |
| NMEA 2000 Certified | Yes | Yes |
| Primary Brand Ecosystem | Garmin | Navico |
Common Concerns Answered
Is the P65 warning a significant safety concern for this product?
The P65 warning indicates that the product contains chemicals known to the State of California to cause cancer or reproductive harm. While this is a standard regulatory notification, it does not inherently imply immediate danger during normal intended use in a marine environment. Users concerned about this can take standard precautions and ensure proper ventilation.
How easy is it to tell the difference between male and female terminators?
While visually similar at a glance, female terminators typically have a slightly recessed pin area, while male terminators have protruding pins. Careful examination of the connector face will clearly distinguish between the two types, preventing installation errors.
Is the price a deterrent for such a small component?
While the initial cost may seem high for a terminator, its function is non-negotiable for a properly operating NMEA 2000 network. The reliability and assurance of a Garmin-branded, NMEA 2000 certified component typically justifies the investment for critical system stability.
Frequently Asked Questions
What is the primary purpose of an NMEA 2000 terminator?
An NMEA 2000 terminator is installed at each end of the NMEA 2000 backbone cable. Its function is to absorb outgoing signals, preventing them from reflecting back into the network, which can cause data corruption and intermittent device failures. Proper termination ensures stable data flow and network integrity.
Why is a female terminator specified for this application?
NMEA 2000 networks utilize a backbone structure. Terminators are placed at the extreme ends of this backbone. The female terminator is designed to connect to the last T-connector on the backbone in a manner consistent with the overall network design standards.
Where is the ideal placement for an NMEA 2000 terminator on the network?
An NMEA 2000 terminator must be installed on the final available port of a T-connector at each physical end of the main NMEA 2000 backbone cable. This ensures the backbone is electrically closed.
Can I use a non-Garmin brand NMEA 2000 terminator with my Garmin network?
Yes, as long as the terminator is NMEA 2000 certified and has the correct gender (male or female) for the intended termination point. However, using Garmin-branded components ensures adherence to Garmin's specific quality and performance tolerances within their ecosystem.
What does the California Proposition 65 warning signify for this product?
The Proposition 65 warning is a California state requirement indicating that the product contains chemicals identified as known to cause cancer, birth defects, or other reproductive harm. This warning is informational and pertains to potential exposure levels in California. The product is safe for its intended use in marine applications when handled appropriately.
