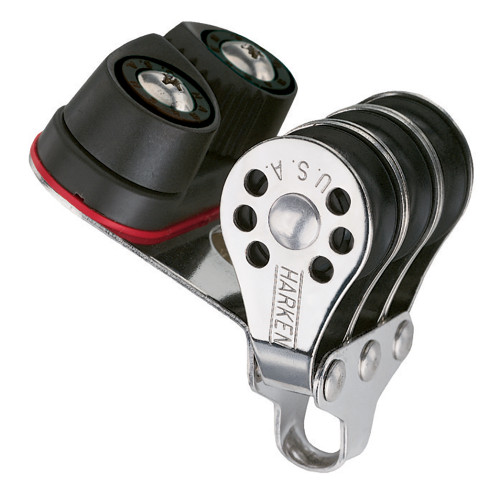

Harken 22mm Triple Micro Block w/Cam Cleat | Boat Supply Store
For sailors and boaters requiring efficient line management in confined spaces, this Harken triple micro block integrates a low-friction sheave with a secure cam cleat. Its 22mm (7/8in) sheave operates with a maximum line diameter of 6mm (1/4in) and supports a working load of 227kg (500lb). This compact unit is exceptionally suited for trim lines on dinghies or smaller keelboats operating on the Texas coast.
Key Features
- Integrated cam cleat for secure and rapid line adjustment
- Compact and lightweight design minimizes deck clutter and weight
- 22mm low-friction sheave ensures smooth line passage
- Triple block configuration offers efficient purchase for multiple leads
- 500lb working load limit provides robust capacity for its size
- Durable construction built for demanding marine environments
- High breaking load of 1200lb ensures safety margin
- Optimized for small to medium sailboats and space-constrained rigging
Specifications
| Product Specifications | |
|---|---|
| Sheave Diameter | 22mm (7/8in) |
| Length | 51mm (2in) |
| Weight | 99g (3.5oz) |
| Max Line Diameter | 6mm (1/4in) |
| Max Working Load | 227kg (500lb) |
| Breaking Load | 544kg (1200lb) |
| Block Configuration | Triple |
Who This Is For
Sailors and boaters seeking a space-saving, integrated solution for line control on small to medium-sized sailboats. Ideal for dinghy classes, trailer sailors, or as an auxiliary control line on larger vessels.
How It Compares
| Feature | Harken 22mm Triple Micro Block w/Cam Cleat | Competitor |
|---|---|---|
| Sheave Diameter | 22mm / 7/8in | — |
| Weight | 99g / 3.5oz | Approx. 150g (estimated), Approx. 250g |
| Maximum Line Diameter | 6mm / 1/4in | — |
| Maximum Working Load | 227kg / 500lb | — |
| Block Configuration | Triple | Triple, Single |
Common Concerns Answered
Is the cam cleat effective with very small diameter lines?
While the cam cleat provides secure holding for its intended line range, users may find it slightly stiffer with extremely small diameter lines. Ensuring the line falls within the specified 6mm (1/4in) maximum diameter is recommended for optimal cam cleat function.
Can this block handle high load applications?
The Harken 22mm Triple Micro Block has a maximum working load of 227kg (500lb) and a breaking load of 544kg (1200lb). For applications exceeding these limits, larger, higher-load rated blocks would be more appropriate.
Will the cam cleat securely hold the line under load?
The integrated cam cleat is designed for secure line holding within the block's specifications. Its efficiency is optimized for the 6mm (1/4in) maximum line diameter, ensuring reliable performance for its intended uses on smaller vessels.
Frequently Asked Questions
What is the maximum line diameter this Harken block can accommodate?
This Harken 22mm Triple Micro Block is designed to accommodate a maximum line diameter of 6mm (1/4in).
What is the working load limit for the Harken 22mm Triple Micro Block with Cam Cleat?
The maximum working load limit for this Harken block is 227kg (500lb).
What are the dimensions of the Harken 22mm Triple Micro Block?
The Harken 22mm Triple Micro Block measures 51mm (2in) in length.
What is the weight of the Harken 22mm Triple Micro Block with Cam Cleat?
The Harken 22mm Triple Micro Block with Cam Cleat weighs 99g (3.5oz).
What is the breaking load of this Harken block?
The breaking load for this Harken block is 544kg (1200lb).
