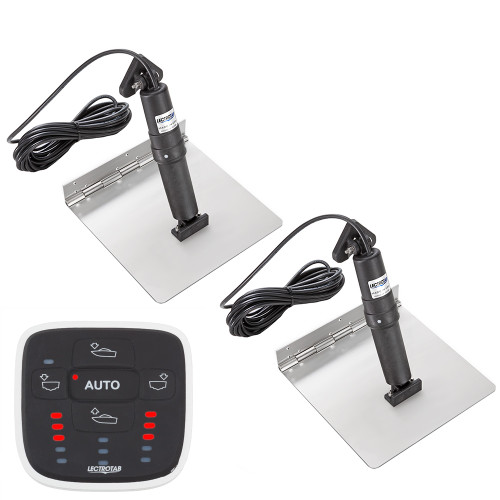

Lectrotab XKA 9x24 Trim Tabs w/ALC | Boat Supply Store
Optimize vessel performance and ride comfort with this non-hydraulic, maintenance-free trim tab system. The 12-gauge 304 stainless steel tabs measure 9" x 24" and are driven by 12V actuators with a 2.25" stroke, offering 1000 lbs of push force for precise adjustments. Integrated Automatic Leveling Control (ALC-1) automatically corrects pitch and roll, ensuring a stable ride and improved fuel efficiency during offshore fishing excursions off the Texas coast.
Key Features
- Unmatched Strength with continuous rolled and pinned hinge eliminating welding.
- Maintenance-Free Operation via a corrosion-free, non-metallic actuator housing.
- Automatic Pitch & Roll Correction provided by integrated Automatic Leveling Control (ALC).
- Quiet Performance maintained by an internal brake system preventing unwanted tab movement.
- Corrosion-Free Construction ensures longevity in marine environments.
- Precision Actuation with a 1000 lbs push force capacity.
- Simplified System with no hydraulic fluid or potential for leaks.
- Versatile Control for 12/24V systems via the ALC-1 unit.
Specifications
| Product Specifications | |
|---|---|
| Tab Size | 9" x 24" |
| Material | 12-gauge 304 Stainless Steel |
| Actuator Type | Non-hydraulic, Electric |
| Actuator Stroke | 2.25" |
| Actuator Cable Length | 23' |
| Actuator Push Force | 1000 lbs |
| Control Unit | ALC-1 |
| Control Voltage | 12/24V |
| Boat Length Suitability | 24' - 37' |
| Hinge Design | Continuous rolled and pinned |
| Brake System | Internal |
Who This Is For
Boaters with vessels ranging from 24 to 37 feet who seek enhanced ride comfort, improved fuel efficiency, and simplified operation through automatic trim tab control. Ideal for those who prefer a low-maintenance, reliable, and corrosion-free system.
How It Compares
| Feature | Lectrotab XKA 9x24 Trim Tabs w/ALC | Competitor |
|---|---|---|
| Tab Size | 9" x 24" | — |
| Actuator Type | Non-hydraulic, Electric | Hydraulic, Electric |
| Automatic Leveling Control | Included (ALC-1) | Optional/Separate Purchase, Optional/Separate Purchase |
| Hinge Design | Continuous rolled and pinned | Welded (typical), Welded |
| Maintenance | Maintenance-free | Requires hydraulic fluid checks and potential maintenance, Low maintenance, but no automatic leveling |
Common Concerns Answered
What if the Automatic Leveling Control (ALC) requires adjustment?
While highly reliable, occasional minor adjustments to the ALC calibration may be necessary to ensure optimal performance, a process well-documented in the installation manual.
Is the initial cost justified compared to simpler systems?
The higher initial investment is offset by the maintenance-free operation, integrated automatic leveling, and superior corrosion resistance of the stainless steel and non-hydraulic design, providing long-term value.
Are there any specific fitment considerations for the 9"x24" tab size?
Careful consideration of hull compatibility and available transom space is recommended to ensure optimal integration and performance of the 9"x24" tab dimensions.
Frequently Asked Questions
What is the recommended boat length for the Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 24?
This trim tab kit is designed for vessels ranging from 24 to 37 feet in length.
What are the benefits of the Automatic Leveling Control (ALC) feature?
The ALC-1 automatically adjusts the trim tabs to maintain a level boat, correcting for hull conditions, passenger load, and water conditions, thereby improving ride comfort and fuel efficiency.
Is this trim tab kit maintenance-free?
Yes, the Lectrotab XKA kit features a non-hydraulic, maintenance-free design with corrosion-free components, eliminating the need for hydraulic fluid checks.
What material are the Lectrotab trim tabs made of?
The Lectrotab trim tabs in this kit are constructed from durable 12-gauge 304 stainless steel.
What is the actuator stroke length for this kit?
The electric actuators included in this kit have a stroke length of 2.25 inches.
