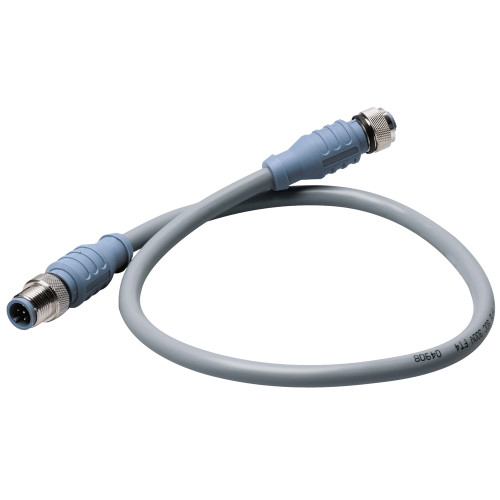

Maretron Micro Double-Ended Cordset 6M | Boat Supply Store
Ensure uninterrupted NMEA 2000 data flow with the Maretron Micro Double-Ended Cordset, engineered for the most demanding marine environments. This 6-meter cable features a robust thermoplastic PUR construction and triple-level shielding, providing superior protection against signal interference and water ingress with an IEC IP68 rating. Its gold-plated brass contacts and nickel-plated brass coupling nut guarantee secure, corrosion-resistant connections essential for critical navigation and instrument data, even in harsh conditions common along the Texas coast.
Key Features
- Reliable Connectivity: 6 Meter length for optimal NMEA 2000 network reach.
- Certified Performance: NMEA 2000 Approved for seamless system integration.
- Superior Environmental Protection: IEC IP68 rating ensures watertight integrity.
- Robust Cabling: Features 4x22 AWG conductors plus a 22 AWG drain wire for signal integrity.
- Advanced Interference Rejection: Triple-level shielding (Overall, Power Pair, Data Pair) minimizes noise.
- Durable Construction: Thermoplastic PUR molded body and carrier built for marine use.
- Corrosion Resistance: Gold-plated brass contacts and nickel-plated brass coupling nut.
- High Current Capacity: Rated for 4.0 Amps, exceeding typical NMEA 2000 requirements.
Specifications
| Product Specifications | |
|---|---|
| Length | 6 Meter |
| Construction | Thermoplastic PUR |
| Contacts | Gold-plated brass |
| Coupling Nut | Nickel-plated brass |
| Outer Jacket | PVC Gray |
| Conductor Insulation | HDPE and SRPVC |
| Conductors | 4x22 AWG |
| Drain Wire | 22 AWG |
| Shielding | Triple-level |
| Environmental Protection | IEC IP68 |
| Temperature Range | -40°C to 80°C |
| Current Rating | 4.0 Amps |
| Voltage Rating | 250V |
| Approvals | UL and CSA Marine |
Who This Is For
Ideal for marine electronics installers and boat owners requiring dependable NMEA 2000 network connections for their instruments. System integrators will benefit from its robust design for custom marine electronic setups.
How It Compares
| Feature | Maretron Micro Double-Ended Cordset 6M | Competitor |
|---|---|---|
| Length | 6.0 meters | 6m |
| NMEA 2000 Certified | Yes | Yes |
| Environmental Protection | IEC IP68 | IPX7 |
| Shielding | Triple-Level (Overall, Power Pair, Data Pair) | Typically less capable |
| Current Rating | 4.0 Amps | 1-2 Amps |
| Voltage Rating | 250V | 12V/24V |
Common Concerns Answered
Why is this Maretron cordset more expensive than generic options?
The Maretron CWR31800 is priced higher due to its superior build quality, including triple-level shielding and an IEC IP68 environmental rating, ensuring significantly greater durability and reliability in harsh marine conditions compared to non-certified alternatives.
Is this Maretron cable readily available?
This specialized marine-grade cordset is typically available through authorized marine electronics retailers, ensuring you receive authentic, high-quality components backed by expert support.
What are the benefits of Maretron's premium pricing and availability?
Investing in Maretron's certified components guarantees robust performance and longevity for your critical NMEA 2000 network, minimizing potential downtime and costly repairs associated with lower-quality cables.
Frequently Asked Questions
What is the total length of the Maretron Micro Double-Ended Cordset?
The Maretron Micro Double-Ended Cordset has a total length of 6 meters.
Is this cordset officially NMEA 2000 certified?
Yes, this Maretron cordset is NMEA 2000 Approved, ensuring it meets stringent network standards for reliable data communication.
What is the environmental protection class for this Maretron cordset?
This Maretron cordset features an IEC IP68 environmental protection rating, indicating it is dust-tight and protected against immersion in water up to a specified depth.
What is the operational temperature range for the Maretron Micro Double-Ended Cordset?
The Maretron Micro Double-Ended Cordset is designed to operate within a temperature range of -40°C to 80°C.
Can you detail the conductor specifications of this cordset?
This cordset contains four 22 AWG conductors for data and power, plus an additional 22 AWG drain wire for enhanced signal integrity and interference reduction.
