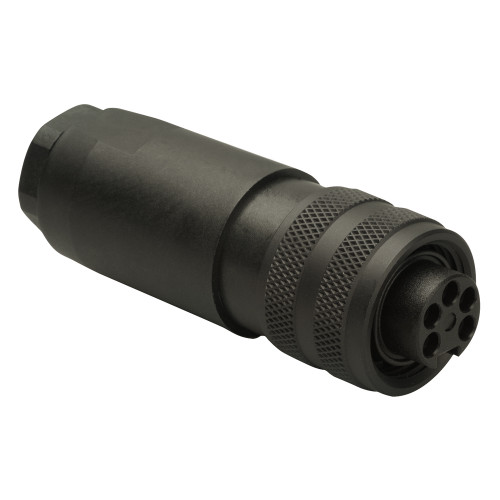

Maretron Micro Field Connector Female | Boat Supply Store
Reliably terminate bulk NMEA 2000 or similar marine network cabling directly on your vessel with this female field-attachable connector. It incorporates color-coded screw terminals, simplifying correct wire polarity and ensuring error-free connections even in challenging maritime conditions. The rugged, marine-grade housing is engineered to withstand salt spray, vibration, and moisture ingress, crucial for maintaining network integrity on offshore fishing platforms or coastal cruisers.
Key Features
- Simplify field installations with intuitive color-coded terminals
- Ensure error-free wiring for NMEA 2000 networks
- Achieve dependable connections in harsh marine environments
- Utilize robust, marine-grade construction for longevity
- Terminate bulk cable efficiently on-site
- Secure connections with screw terminal design
- Maintain network integrity against environmental factors
- Ideal for custom cable runs and repairs
Specifications
| Product Specifications | |
|---|---|
| Connector Type | Female, Micro |
| Termination Style | Screw Terminals |
| Cable Compatibility | Bulk Cable |
| Wire Identification | Color-coded terminals |
| Housing Material | Marine-grade rugged plastic |
Who This Is For
Marine technicians and boat builders requiring precise, field-terminable NMEA 2000 connections, as well as DIY boat owners undertaking network installations or repairs. This connector is designed for those who need to create robust, custom-length cable assemblies in situ.
How It Compares
| Feature | Maretron Micro Field Connector Female | Garmin 010 |
|---|---|---|
| Connector Type | Micro (Female) | Micro-C |
| Termination Method | Screw Terminals | Screw Terminals |
| Field Installable | Yes | Yes |
| Wire Identification | Color-coded screw terminals | Standard screw terminals |
Common Concerns Answered
Are field-terminated connections as reliable as factory-made cables?
While field termination requires precision, this Maretron connector's color-coded screw terminals and rugged marine-grade housing are specifically designed to mitigate common failure points, offering a dependable solution when executed correctly according to the manual. Customer sentiment indicates high satisfaction with its reliability in marine environments.
I've had issues with fine gauge wires not securing properly in screw terminals. Is this connector problematic?
Some users report occasional difficulties securing very fine gauge wires. It is critical to ensure the wires are stripped to the correct length and that the screw terminals are tightened firmly. Following the installation guide meticulously will maximize connection security.
Is it difficult to get the wire stripping length correct for the screw terminals?
Achieving the precise wire strip length can be a point of difficulty. Careful measurement and a reliable wire stripper are essential for a secure connection. The color-coding aids in proper wire placement, which indirectly helps in ensuring the correct wire length is used to reach the terminal fully.
Frequently Asked Questions
How do I connect the Maretron Micro Field-Attachable Connector?
Refer to the official Maretron manual for detailed instructions. Generally, you will strip the bulk cable to expose the individual conductors, then insert them into the color-coded screw terminals, ensuring correct polarity, and finally tighten the screws to secure the wires before closing the connector housing.
What is the purpose of the color-coded screw terminals?
The color-coded screw terminals are designed to visually guide the installer in connecting the correct wire (e.g., power, ground, data +/-, shield) to its corresponding terminal, thereby preventing wiring errors and ensuring the NMEA 2000 network functions correctly.
Is this connector suitable for harsh marine environments?
Yes, the Maretron Micro Field-Attachable Connector features a rugged housing material specifically engineered to withstand the demanding conditions of marine environments, including exposure to saltwater, UV radiation, and vibration, ensuring long-term reliability.
What type of cable does this connector attach to?
This connector is designed for terminating bulk cable, typically NMEA 2000 or similar 5-conductor marine network cables, allowing for custom length runs and on-site repairs.
What NMEA 2000 wire gauge can be reliably terminated with screw terminals?
While the manual provides specific guidance, screw terminals are generally suitable for standard NMEA 2000 wire gauges. For very fine wires, careful stripping and firm tightening are paramount to ensure a secure electrical connection.
