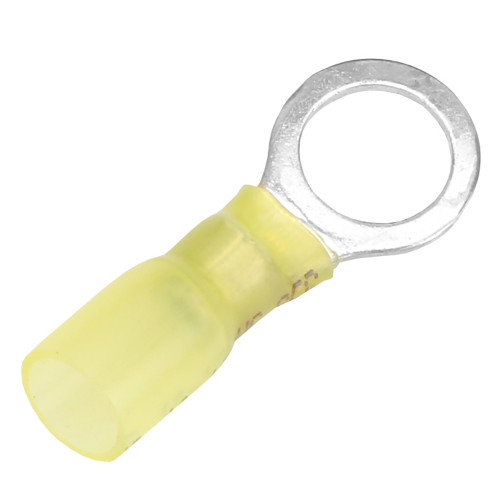

Pacer 12-10 AWG Heat Shrink Ring Terminals | Boat Supply Store
Ensure reliable power distribution and prevent electrical failures in demanding marine environments with these Pacer 12-10 AWG heat shrink ring terminals. Featuring a #8 stud size and constructed from tinned copper, these terminals offer superior corrosion resistance essential for saltwater conditions. With a robust 600V rating and an operating temperature range of -55°C to 125°C, they provide lasting electrical integrity for critical systems on offshore fishing boats or coastal cruising vessels.
Key Features
- Corrosion-resistant tinned copper construction for marine longevity
- Environmental protection via integrated heat shrink tubing
- Secure strain relief provided by the heat shrink element
- Optimized for #8 stud size electrical connections
- Versatile compatibility with 12-10 AWG wire gauges
- High voltage rating of 600 Volts for safety
- Wide operating temperature range from -55°C to 125°C
- Economical pack size of 100 terminals for multiple installations
Specifications
| Product Specifications | |
|---|---|
| wire gauge | 12-10 AWG |
| stud size | #8 |
| material | Tinned copper |
| voltage rating | 600V |
| operating temperature | -55°C to 125°C |
| terminal pad width | 0.39" |
| pack quantity | 100 |
| color | Yellow |
Who This Is For
Marine electricians and boat owners performing system upgrades or repairs will find these terminals critical for robust electrical work. DIY boat repair enthusiasts can confidently make durable, protected connections that withstand the elements.
How It Compares
| Feature | Pacer 12-10 AWG Heat Shrink Ring Terminals | Ancor 10 |
|---|---|---|
| Wire AWG | 12-10 AWG | 10-12 AWG, 10-12 AWG |
| Stud Size | #8 | #8, #8 |
| Insulation Type | Heat Shrink | Heat Shrink, Nylon |
| Material | Tinned Copper | Tinned Copper, Tinned Copper |
| Pack Size | 100 | 100, 10 |
| Voltage Rating | 600 Volts | 600 Volts, 600 Volts |
Common Concerns Answered
Will these terminals corrode in my boat's environment?
Constructed with tinned copper, these Pacer terminals are specifically designed to resist corrosion, ensuring a reliable electrical connection even in harsh marine conditions.
Is it difficult to install these terminals without specialized tools?
While a proper crimping tool and heat source are recommended for optimal results, users with basic crimping skills and a heat gun can achieve secure connections. Proper technique is key.
How durable are these connections when exposed to vibration and movement on a boat?
The integrated heat shrink tubing provides excellent strain relief, helping to prevent wire fatigue and maintain a secure connection despite the constant motion and vibration experienced on a vessel.
Frequently Asked Questions
What is the maximum voltage rating for these Pacer heat shrink ring terminals?
These Pacer heat shrink ring terminals have a maximum voltage rating of 600 Volts.
What is the operating temperature range for these terminals?
The operating temperature range for these terminals is from -55°C to 125°C.
What size stud do these ring terminals fit?
These ring terminals are designed to fit a #8 stud size.
What wire gauge is compatible with these terminals?
These terminals are compatible with wire gauges ranging from 12 AWG to 10 AWG.
Are these terminals made of tinned copper?
Yes, these terminals are constructed from tinned copper for enhanced corrosion resistance.
