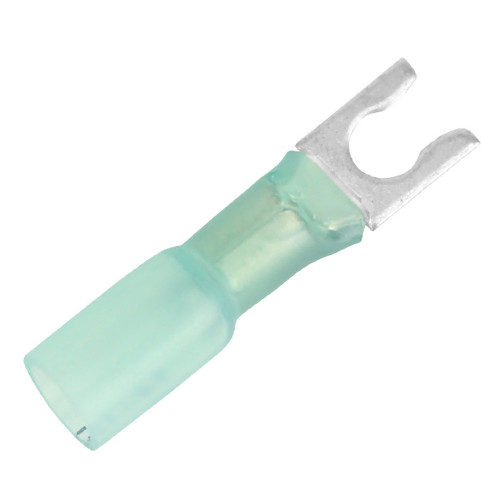

Pacer 16-14 AWG Heat Shrink Spade Terminal | Boat Supply Store
For critical marine electrical systems operating in high-corrosion environments, this Pacer heat shrink spade terminal provides a robust solution. Engineered with high-grade tinned copper, it ensures superior resistance to saltwater intrusion and galvanic corrosion, vital for reliable power distribution on offshore vessels. Its 16-14 AWG wire capacity and #10 stud size are optimized for common marine accessory installations, offering a secure connection with a 0.32" terminal pad width to minimize vibration-induced failures.
Key Features
- Superior Corrosion Resistance achieved through high-quality tinned copper construction.
- Environmentally Sealed design to protect against moisture ingress and galvanic corrosion.
- Durable Construction built to withstand the rigors of marine environments.
- Reliable Connections ensuring consistent electrical flow and preventing intermittent faults.
- Efficient Installation facilitated by heat shrink technology for a streamlined process.
- Long-lasting Performance guaranteed by premium materials and robust design.
- Solid Connection Assurance with proper crimping and heat application.
- Meets Multiple Compliances for assured quality and safety standards.
Specifications
| Product Specifications | |
|---|---|
| Wire Gauge | 16-14 AWG |
| Stud Size | #10 |
| Terminal Pad Width | 0.32" |
| Color | Blue |
| Pack Size | 100 Pack |
| Material | Tinned Copper |
| Listing Status | UL Listed |
Who This Is For
Ideal for marine enthusiasts and DIY boaters seeking to upgrade or repair their vessel's electrical systems with durable, corrosion-resistant components. Professional marine technicians will also appreciate the reliability and ease of use for professional installations.
How It Compares
| Feature | Pacer 16-14 AWG Heat Shrink Spade Terminal | Ancor Heat Shrink Spade Terminal |
|---|---|---|
| Wire AWG | 16-14 AWG | 16-14 AWG |
| Stud Size | #10 | #10 |
| Terminal Pad Width (inch) | 0.32" | 0.315" |
| Package Size | 100 Pack | 100 Pack |
| Material | Tinned Copper | Tinned Copper |
Common Concerns Answered
Will the heat shrink tubing properly seal?
To ensure a robust, environmentally sealed connection, it's crucial to use a proper heat gun on the shrink tubing. Consistent heat application will create a tight, waterproof seal, preventing moisture ingress and ensuring long-term durability.
How do I ensure a tight crimp for reliable connections?
Achieving a perfectly tight crimp requires the correct marine-grade crimping tool designed for spade terminals. Proper wire stripping and placement within the terminal before crimping are essential steps to guarantee a secure electrical connection that resists vibration and pull-out.
Is this terminal durable enough for harsh marine environments?
Yes, this Pacer terminal is specifically constructed with high-quality tinned copper, which provides superior corrosion resistance against saltwater and harsh marine conditions. The heat shrink tubing further enhances this protection by creating an environmentally sealed connection, mitigating issues from vibration and loosening.
Frequently Asked Questions
What is the stud size for this Pacer heat shrink spade terminal?
The stud size for this Pacer heat shrink spade terminal is #10.
What wire gauge is compatible with this terminal?
This terminal is designed for use with 16-14 AWG (American Wire Gauge) wires.
How many terminals are included in this pack?
This pack includes 100 Pacer heat shrink spade terminals.
What is the terminal pad width?
The terminal pad width for this specific spade terminal is 0.32 inches.
What material is used for corrosion resistance?
The terminal is constructed from high-quality tinned copper, which offers excellent corrosion resistance in marine environments.
