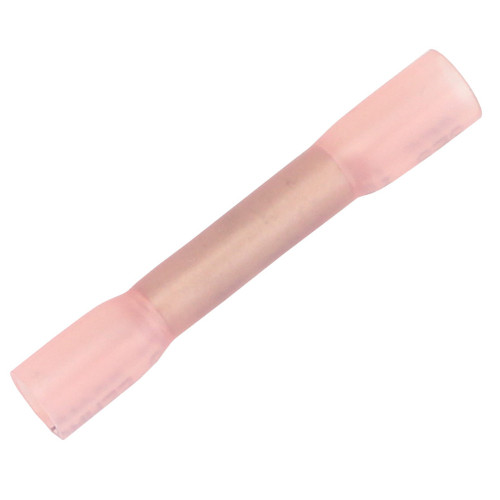

Pacer 22-18 AWG Heat Shrink Butt Connector | Boat Supply Store
Achieve robust, environmentally sealed electrical splices critical for navigating demanding marine environments. These Pacer butt connectors feature a tinned copper barrel and a unique epoxy lining that melts to form a superior moisture and corrosion barrier, essential for offshore operations or humid coastal conditions. Rated for up to 600 Volts and operating across a temperature range of -55C to 125C, they are engineered for reliability on vessels operating from the Gulf Coast to the Great Lakes. The heat shrink insulation further solidifies the connection, safeguarding against vibration and potential short circuits.
Key Features
- Corrosion resistant tinned copper construction ensures longevity
- Environmentally sealed connection via heat shrink tubing
- Superior seal achieved with melting epoxy lining
- Impact resistant for durability in rough conditions
- Rated for up to 600 Volts for robust power handling
- Wide -55C to 125C operating temperature range for all climates
- Accommodates wire gauges from #22 to #18 AWG
- UL, CSA, and RoHS compliant for safety and environmental standards
Specifications
| Product Specifications | |
|---|---|
| Brand | Pacer |
| Wire Range | #22-18 AWG |
| Max Wire Insulation Outer Diameter | 0.19" |
| Construction | Tinned copper, epoxy lining, heat shrink insulation |
| Voltage Rating | 600 Volts |
| Operating Temperature | -55C to 125C |
| Compliance | UL, CSA, RoHS |
| Package Quantity | 25 Pack |
Who This Is For
Marine enthusiasts and DIY boaters requiring reliable, waterproof electrical connections for vessel maintenance and upgrades. Professional marine technicians will also find these connectors indispensable for ensuring long-term electrical integrity in challenging maritime conditions.
How It Compares
| Feature | Pacer 22-18 AWG Heat Shrink Butt Connector | Ancor Heat Shrink Butt Connector |
|---|---|---|
| Wire Range | 22-18 AWG | 22-18 AWG |
| Insulation Type | Heat Shrink with Epoxy Lining | Heat Shrink |
| Package Size | 25 Pack | 25 Pack, 10 Pack |
| Max Voltage | 600 Volts | 600 Volts |
Common Concerns Answered
How can I ensure a durable electrical connection in a harsh marine environment?
These Pacer connectors utilize a tinned copper barrel for superior corrosion resistance and an epoxy lining within the heat shrink tubing. When properly heated, this epoxy melts to create a superior, environmentally sealed connection, effectively preventing moisture ingress and long-term corrosion that can compromise electrical systems on boats.
What is the recommended tool for using these butt connectors?
Achieving a perfect crimp is crucial for reliability. While these connectors are designed for excellent performance, users report that using an improper crimping tool can lead to difficulties. We recommend utilizing a dedicated marine-grade ratcheting crimper specifically designed for butt connectors to ensure a secure and consistent mechanical bond.
Will the heat shrink tubing cause issues during installation?
The heat shrink tubing provides the environmental seal, but requires careful application. To avoid melting the wire insulation beneath, use a heat gun on a medium setting and apply heat evenly around the connector. Rotating the connector as you heat will ensure uniform shrinkage and activation of the internal epoxy lining for a complete seal.
Frequently Asked Questions
What is the wire gauge range for these Pacer heat shrink butt connectors?
These Pacer heat shrink butt connectors are designed for wire gauges ranging from #22 AWG to #18 AWG.
What is the maximum voltage rating for these connectors?
The maximum voltage rating for these Pacer heat shrink butt connectors is 600 Volts.
Are these connectors suitable for marine environments?
Yes, these connectors are specifically designed for marine applications, featuring tinned copper construction and an epoxy lining to provide an environmentally sealed connection that resists moisture and corrosion.
What is the operating temperature range for these connectors?
These connectors are rated for an operating temperature range of -55C to 125C (-67F to 257F).
How many connectors are included in a pack?
Each pack of Pacer 22-18 AWG Heat Shrink Butt Connectors contains 25 individual connectors.
