Description

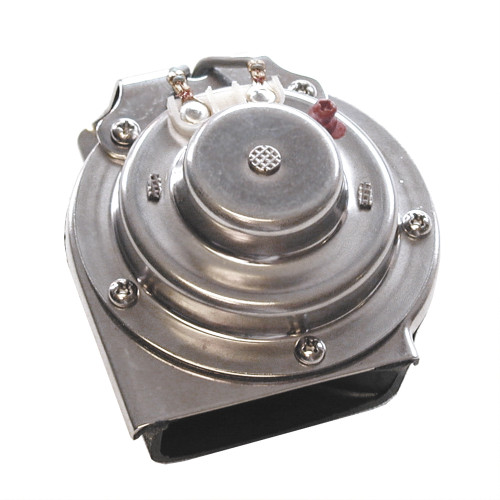

Schmitt Marine 12V Hidden Horn 105dB | Boat Supply Store
For boaters requiring a powerful and discreet audible signaling device, this Schmitt Marine horn provides an essential safety upgrade. It outputs a potent 105 dB at 1 meter, ensuring clear communication across the water. Constructed with durable 304 stainless steel trumpets, diaphragm, and mounting brackets, it meets ABYC A-23 standards for vessels up to 12 meters.
Key Features
- Superior Loudness: Achieves 105 dB @ 1 Meter for clear signaling.
- Durable Construction: 304 stainless steel trumpets, diaphragm, and mounting brackets resist corrosion.
- Compact & Hidden Design: Integrates discreetly onto the vessel.
- ABYC A-23 Compliant: Meets standards for boats up to 12 meters.
- Simplified Installation: Pre-wired harness reduces setup complexity.
- Significant Sound Output: Outperforms many competitive compact options.
- Robust Materials: Engineered for marine environment longevity.
- Efficient Power Draw: Operates with a maximum 3 Amp draw.
Specifications
| Product Specifications | |
|---|---|
| Voltage | 12V |
| Dimensions | 3"L x 3-1/4"W x 1-3/4"H |
| Max Draw | 3 Amp |
| Sound Output | 105 db @ 1 Meter |
| Material | 304 Stainless Steel (Trumpets, Diaphragm, Mounting Brackets) |
| ABYC Compliance | Meets ABYC A-23 for boats up to 12 meters |
Who This Is For
Ideal for boaters operating vessels up to 12 meters (approx. 39 feet) who require a discreet yet powerful 12V audible signaling device. Boaters seeking ABYC compliance and robust construction will find this horn a reliable solution.
How It Compares
| Feature | Schmitt Marine 12V Hidden Horn 105dB | Competitor |
|---|---|---|
| Sound Output | 105 db @ 1 Meter | 110 dB, 105 dB |
| Material | 304 Stainless Steel (Trumpets, Diaphragm, Brackets) | Plastic housing, metal trumpets, Plastic housing, metal bell |
| Dimensions (Approximate) | 3"L x 3-1/4"W x 1-3/4"H | 4.5" L x 3.5" W x 3" H, 6" L x 4" W x 4" H |
| ABYC Compliance | Meets ABYC A-23 for boats up to 12 meters | Not specified, Not specified |
| Installation Feature | Pre-wired, Fits existing hole patterns | Not specified, Not specified |
Common Concerns Answered
Is the installation process complicated?
The Schmitt Marine Mini Compact Single Hidden Horn is pre-wired and designed to fit existing hole patterns, simplifying installation. While basic electrical knowledge and hand tools are required, it's rated at an easy installation difficulty (2/8).
Will I need to purchase additional wiring or mounting hardware?
This horn is pre-wired for simplified installation, and its design aims to fit existing hole patterns, minimizing the need for additional hardware. However, always verify existing mounting configurations and ensure appropriate wire gauge and connectors for your vessel's electrical system.
Is this horn loud enough for my vessel?
With a substantial output of 105 dB @ 1 Meter, this horn provides superior loudness for its compact size, exceeding many competitors and meeting ABYC A-23 standards for boats up to 12 meters. This ensures effective communication in various marine environments.
Frequently Asked Questions
What boats is the Schmitt Marine Mini Compact Single Hidden Horn suitable for?
This horn is suitable for boater operating vessels up to 12 meters (approximately 39 feet) that require a compact and powerful audible signaling device compliant with ABYC A-23 standards.
How loud is the Schmitt Marine Mini Compact Single Hidden Horn?
The horn delivers a sound output of 105 decibels (dB) measured at 1 meter.
What are the dimensions of the Schmitt Marine Mini Compact Single Hidden Horn?
The horn measures 3 inches in length, 3-1/4 inches in width, and 1-3/4 inches in height.
Is the Schmitt Marine Mini Compact Single Hidden Horn pre-wired?
Yes, the horn is pre-wired to facilitate an easier and more straightforward installation process.
What material is the Schmitt Marine Mini Compact Single Hidden Horn made of?
The trumpets, diaphragm, and mounting brackets are constructed from durable 304 stainless steel.
