T-H Marine ATLAS 6" Jack Plate | Boat Supply Store

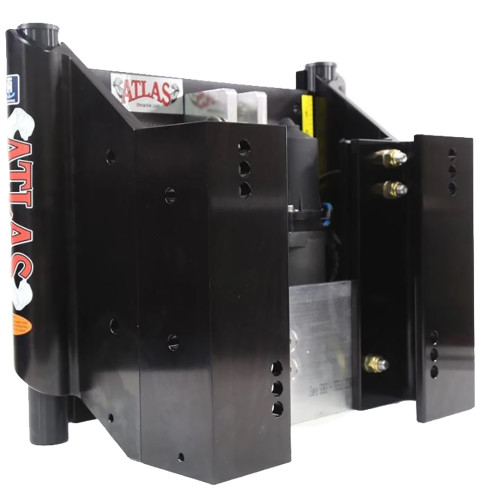

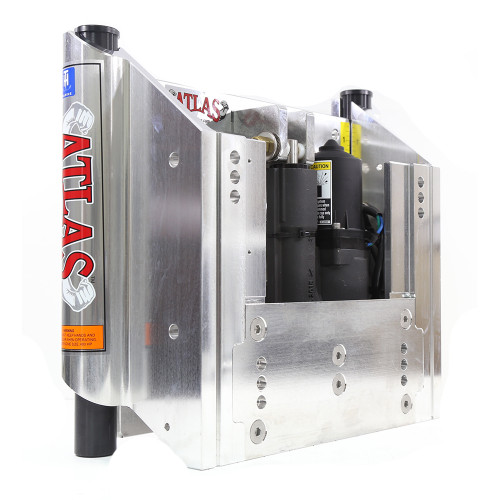

Maximize your outboard's potential by precisely adjusting engine height with the T-H Marine ATLAS™ 6" Set Back Hydraulic Jack Plate. This robust unit features an integrated hydraulic system, eliminating external components and providing a rapid 8-second lift time. Engineered to handle up to 300 HP or 625 pounds, it's ideal for performance-driven vessels seeking improved hull performance and propeller clearance, such as bass boats running the flats of Lake Fork.
Key Features
- Revolutionary one-piece design integrates all hydraulics.
- Innovative Rod and Slot lifting system for superior strength.
- Handles stresses from the most powerful outboards up to 300 HP or 625 lbs.
- Eliminates separate pumps and reservoirs for a cleaner installation.
- Fast 8-second lift time from bottom to top.
- Includes essential relay harness and rocker switch.
- Durable Gloss Black Anodized finish for corrosion resistance.
- Optimizes engine height for peak speed, hole shot, and fuel economy.
Specifications
| Product Specifications | |
|---|---|
| Setback | 6 inches |
| Max Horsepower | 300 HP |
| Weight Capacity | 625 pounds |
| Lift Time (Bottom to Top) | 8 seconds |
| Hydraulic System | Integrated |
| Finish | Gloss Black Anodized |
Who This Is For
Performance-oriented boaters with high-horsepower outboard engines (up to 300 HP) seeking to optimize engine height for improved performance and efficiency. This jack plate is particularly beneficial for those requiring a setback to enhance hull dynamics or ensure adequate propeller clearance.
How It Compares
| Feature | T-H Marine ATLAS 6" Jack Plate | Competitor |
|---|---|---|
| Setback | 6 inches | — |
| Max Horsepower | 300 HP | 200 HP |
| Weight Capacity | 625 lbs | — |
| Hydraulic System | Integrated | External |
| Lift Time (Bottom to Top) | 8 seconds | Typically less capable |
Common Concerns Answered
Are there any common issues reported with this jack plate?
While customer sentiment is highly positive, occasional reports mention minor cosmetic imperfections upon arrival. Some users also advise professional installation due to complexity. The included rocker switch may also feel less premium than expected by some.
Is the installation process straightforward for a DIYer?
The installation difficulty is rated 4/5. While integrated hydraulics simplify some aspects, proper transom and engine mounting, along with electrical connections, require mechanical aptitude and potentially specialized tools. Professional installation is often recommended.
Is the price point a significant barrier to purchase?
The price is a consideration for some buyers, and the installation complexity might deter DIYers without sufficient experience. However, the advanced features and performance benefits often justify the investment for serious boaters.
Frequently Asked Questions
What is the maximum horsepower this jack plate can handle?
This T-H Marine ATLAS™ Hydraulic Jack Plate is designed to handle outboard engines up to 300 HP.
How fast does the hydraulic unit lift the engine?
The integrated hydraulic unit is fast, lifting the engine from its bottom to its top position in approximately 8 seconds.
Does this jack plate require a separate pump and reservoir?
No, this jack plate features an innovative one-piece design with all hydraulics built directly into the jack itself, eliminating the need for separate pumps and reservoirs.
What is included with the T-H Marine ATLAS™ 6" Set Back Hydraulic Jack Plate?
The package includes the hydraulic jack plate, a relay harness, and a rocker switch for operation.
Is this jack plate compatible with all outboard engines up to 300 HP?
While designed for engines up to 300 HP or 625 pounds, compatibility can depend on specific engine mounting bolt patterns and transom configurations. Reviewing the FitmentData and installation manual is recommended.
