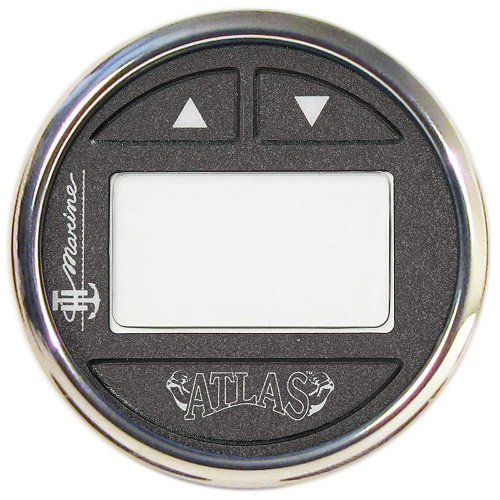

T-H Marine ATLAS Jack Plate Digital Gauge Kit | Boat Supply Store
Achieve optimal hull attitude and maximize your vessel's hydrodynamic efficiency with the T-H Marine ATLAS™ Hydraulic Gauge Kit. This digital LED gauge provides a precise indication of your jack plate's deployed height, numbered from 0 to 20, with each increment representing a 1/4" rise. This allows for granular adjustments critical for offshore fishing applications or navigating shallow Texas bays, ensuring your engine operates at peak efficiency and fuel economy.
Key Features
- Precise Digital LED Position Gauge for Atlas™ Hydraulic Jack Plates
- Accurate All Digital Readout for repeatable settings
- Customizable Black Face and Stainless Steel Face Options
- Versatile Outer Bezel available in Stainless Steel or Black Polymer
- Granular Each Number Indicates 1/4" Rise
- Comprehensive Numbered from 0 to 20
- Universal Fit All Atlas™ Jacks are Pre-drilled to Fit
- Optimized Fine-tune jack plate settings for improved boat performance
Specifications
| Product Specifications | |
|---|---|
| Display Type | Digital LED |
| Jack Plate Compatibility | T-H Marine ATLAS™ Hydraulic Jack Plates (4" & 8") |
| Height Indication | Numbered 0-20 (each number represents 1/4" rise) |
| Bezel Material Options | Black Polymer or Stainless Steel |
| Face Material Options | Black or Stainless Steel |
| Pre-drilled Fitment | All Atlas™ Jacks |
Who This Is For
Boaters utilizing T-H Marine ATLAS™ Hydraulic Jack Plates (4" and 8" models) seeking precise, digital feedback for optimal engine trim. This kit is ideal for those who want to fine-tune their jack plate's position to maximize performance and fuel efficiency.
How It Compares
| Feature | T-H Marine ATLAS Jack Plate Digital Gauge Kit | Competitor |
|---|---|---|
| Display Type | Digital LED | Analog, Digital |
| Increment Indication | Each Number = 1/4" Rise | Analog needle, Digital |
| Bezel Options | Black Polymer or Stainless Steel | Chrome, Black |
| Face Options | Black or Stainless Steel | Not specified, Not specified |
Common Concerns Answered
Are there any known issues with this gauge kit?
Some users have reported occasional challenges with LED brightness visibility under intense direct sunlight. Additionally, initial wiring connections may require careful attention for those unfamiliar with marine electrical systems.
Is this gauge kit necessary if I have a hydraulic jack plate?
While not strictly necessary, a digital gauge offers superior precision for optimizing jack plate settings, directly impacting hull attitude, performance, and fuel economy. This level of control is particularly beneficial for achieving specific running characteristics in varying water conditions.
How difficult is it to install the T-H Marine ATLAS™ Hydraulic Gauge Kit?
Installation is rated at a 2/5 difficulty, requiring basic electrical wiring knowledge and mechanical aptitude. While instructions are typically clear, professional installation is an option for those seeking a seamless setup.
Frequently Asked Questions
What is the T-H Marine ATLAS™ Hydraulic Gauge Kit used for?
This gauge kit provides a clear, digital indication of your jack plate's deployed height, allowing for precise adjustments to optimize boat performance and fuel efficiency.
What size ATLAS™ Jack Plates is this gauge kit compatible with?
This gauge kit is compatible with T-H Marine ATLAS™ Hydraulic Jack Plates, specifically the 4" and 8" models.
What does each number on the gauge indicate?
Each numbered increment on the gauge represents a 1/4" rise in the jack plate's position.
What are the bezel options for this gauge kit?
The outer bezel is available in either Black Polymer or Stainless Steel.
Does this gauge kit come with a black or stainless steel face?
This gauge kit offers options for both a black face and a stainless steel face.
