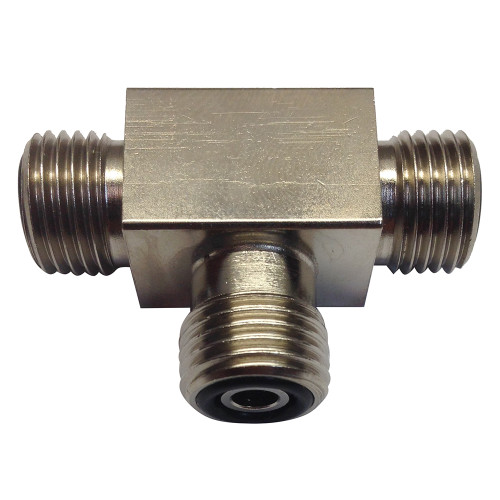

Uflex ORF Hose T-Fitting Assembly | Boat Supply Store
Engineered for demanding marine hydraulic steering applications, this Uflex T-fitting assembly provides a critical interface for O-ring face seal (ORF) hoses, eliminating the need for incompatible boss fittings on new outboard cylinders. It ensures a secure and leak-free connection utilizing an ORB (O-Ring Boss) fitting on the #6 size port, with the cylinder side precisely machined to 9/16 - 18 UNF 2A threads and the hose side to 9/16 - 24 UNEF 2A threads. This component is essential for maintaining optimal steering system integrity during maintenance or upgrades on offshore fishing vessels operating in challenging saltwater environments.
Key Features
- Replaces boss fittings in new outboard cylinders for seamless integration
- Specifically designed for connecting O-ring face seal hoses
- Features a robust ORB (O-Ring Boss) connection type
- Accommodates #6 size to 3/8 COMP FITTING
- Precise Cylinder Side Thread: 9/16 - 18 UNF 2A
- Precise Hose Side Thread: 9/16 - 24 UNEF 2A
- Ensures leak-free performance in critical steering systems
- Engineered for reliable hydraulic steering applications
Specifications
| Product Specifications | |
|---|---|
| MPN | 71861H |
| Connection Type | ORB (O-Ring Boss) |
| Size | #6 to 3/8 COMP FITTING |
| Cylinder Side Thread | 9/16 - 18 UNF 2A |
| Hose Side Thread | 9/16 - 24 UNEF 2A |
| Designed for ORF Hose | Yes |
Who This Is For
Marine mechanics and boat builders performing precise hydraulic steering system installations or upgrades will find this fitting invaluable. DIY boaters tackling outboard steering maintenance requiring specialized ORF hose connections will also benefit from its specific design.
How It Compares
| Feature | Uflex ORF Hose T-Fitting Assembly | Competitor |
|---|---|---|
| Connection Type | ORB (O-Ring Boss) | Standard SAE Flare |
| Cylinder Side Thread | 9/16 - 18 UNF 2A | Varies by application |
| Hose Side Thread | 9/16 - 24 UNEF 2A | Varies by application |
| Designed for ORF Hose | Yes | No |
Common Concerns Answered
Can I use this fitting with standard hydraulic hoses?
This T-fitting is specifically designed for O-ring face seal (ORF) hoses and will not properly seal with standard SAE flare hoses. Ensure you are using compatible ORF hoses for a secure hydraulic connection.
Is it difficult to find compatible ORF hoses for this fitting?
While ORF fittings are specialized, they are critical for specific high-pressure applications. We recommend consulting your steering system's documentation or a marine hydraulic specialist to identify the correct ORF hose specifications for this fitting.
Will this fitting work with any outboard steering cylinder?
This T-fitting is designed to replace the boss fitting in new outboard cylinders and requires specific thread compatibility. The cylinder side thread is 9/16 - 18 UNF 2A, and the hose side is 9/16 - 24 UNEF 2A; verify these specifications match your cylinder and desired hose.
Frequently Asked Questions
What is the primary function of the Uflex T-Fitting Assembly - ORF Hose?
Its primary function is to provide a secure and leak-free transition between O-ring face seal (ORF) hydraulic hoses and outboard steering cylinders, specifically replacing standard boss fittings on new cylinders.
What type of hose connections does this T-fitting assembly support?
This T-fitting assembly exclusively supports O-ring face seal (ORF) hoses, utilizing an O-Ring Boss (ORB) connection type.
What are the thread sizes for the cylinder and hose sides of this fitting?
The cylinder side features a 9/16 - 18 UNF 2A thread, and the hose side is threaded for 9/16 - 24 UNEF 2A connections.
Is this T-fitting assembly compatible with standard O-ring face seal hoses?
Yes, this T-fitting assembly is specifically engineered for connecting to standard O-ring face seal (ORF) hoses.
What is the typical application for the Uflex T-fitting assembly - ORF Hose?
The typical application involves integrating ORF hoses into new outboard steering cylinders for applications requiring a robust, leak-proof hydraulic connection, commonly found in performance boats and larger offshore fishing vessels.
