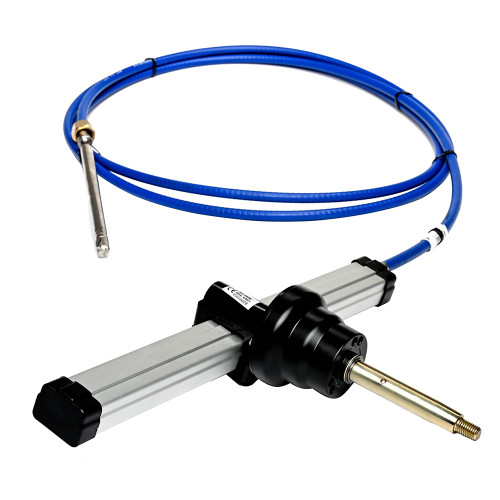

Uflex TM87 16" Rack & Pinion Steering | Boat Supply Store
Effortlessly upgrade your vessel's helm control with a high-efficiency rack and pinion steering system engineered for broad compatibility. This Uflex TM87 system features a 3.7" cable stroke and a 3.3 turns lock-to-lock ratio, facilitating precise control. Constructed with all stainless steel cable output ends and corrosion-resistant materials, it ensures longevity in marine environments and meets stringent ISO 8848 and ABYC P17 safety standards, providing reliable operation for boats up to their specified horsepower limitations.
Key Features
- High-Efficiency Rack & Pinion Steering System
- Universal Replacement for standard, ZTF, and no feedback rotary helms
- No-Drill Installation with included X34 mounting bezel
- Corrosion-Resistant Materials ensure durability in harsh marine conditions
- Meets Stringent Safety Standards including ISO 8848 and ABYC P17
- Precise Control with 3.3 turns lock-to-lock and 3.7" cable stroke
- Wide Cable Compatibility with SSC134, SSC135, and SSC154 cables
- Stainless Steel Cable Output Ends for enhanced strength and corrosion resistance
Specifications
| Product Specifications | |
|---|---|
| Steering Type | Rack & Pinion |
| Helm Type | Front Mount (G87) |
| Cable Compatibility | SSC134, SSC135, SSC154 |
| Helm Compatibility | SH91610p |
| Cable Stroke | 3.7 inches |
| Turns Lock-to-Lock | 3.3 |
| Cable Bend Radius | 7.9 inches |
| Shaft Type | Standard 3/4" Tapered |
| Mounting Bezel | X34 (No-Drill) |
| Materials | Corrosion-resistant, all stainless steel cable output ends |
| Safety Standards | Exceeds ISO 8848, Exceeds ABYC P17 |
| Maximum Horsepower | Not for boats exceeding maximum rating |
Who This Is For
Boat owners seeking a high-efficiency, universal rack and pinion steering system that simplifies installation and upholds rigorous safety standards. This system is ideal for those upgrading from older rotary helms or replacing existing rack and pinion units on a variety of vessel types within the specified horsepower limits.
How It Compares
| Feature | Uflex TM87 16" Rack & Pinion Steering | Competitor |
|---|---|---|
| Steering Type | Rack & Pinion | Rack & Pinion |
| Cable Stroke | 3.7 inches | — |
| Turns Lock-to-Lock | 3.3 | 3.1 |
| Helm Type | Front Mount | Front Mount |
| Cable Compatibility | SSC134, SSC135, SSC154 | SSC62 series |
| Installation | No-drill bezel, universal replacement | Quick Connect cable |
| Max HP Rating | Not specified, but not for engines exceeding boat's rating | Up to 150 HP |
Common Concerns Answered
What if I don't have the SSC134, SSC135, or SSC154 cable series?
The Uflex TM87 is specifically designed for compatibility with SSC134, SSC135, and SSC154 cables. If your current setup utilizes a different cable series, you will need to replace the steering cable as well to ensure proper function and safety with this system.
Will the no-drill bezel truly fit my existing helm cutout without any adjustments?
While engineered for a universal fit and minimal drilling, minor adjustments to the dash opening may occasionally be necessary on certain older or non-standard boat models to achieve a perfect fit with the X34 mounting bezel.
Is a steering wheel included with this system?
No, the steering wheel is sold separately. This allows you to select a steering wheel that best matches your aesthetic preferences and ergonomic requirements for your vessel.
Frequently Asked Questions
Is the Uflex TM87 16" Rack & Pinion Steering System compatible with my existing steering wheel?
The steering wheel itself is not included and is sold separately. You will need to ensure your chosen steering wheel utilizes a standard 3/4" tapered shaft, which is the standard for this Uflex system.
What type of steering cables is the Uflex TM87 compatible with?
The Uflex TM87 steering system is compatible with SSC134, SSC135, and SSC154 steering cables.
Can I use the Uflex TM87 on a boat with an engine exceeding its maximum horsepower rating?
No, this system is not designed or rated for use on boats with engines that exceed the system's maximum horsepower rating. Always adhere to the manufacturer's specified limits for safe operation.
Does the Uflex TM87 steering system meet safety standards?
Yes, the Uflex TM87 steering system exceeds both ISO 8848 and ABYC P17 safety standards, ensuring a high level of reliability and safety for your marine application.
Is the Uflex TM87 a direct replacement for my current rack and pinion steering helm?
The Uflex TM87 is designed as a universal replacement for standard, ZTF, and non-feedback rotary helms. While it aims for direct replacement compatibility, minor adjustments may be needed for some older or non-standard helm cutouts.
