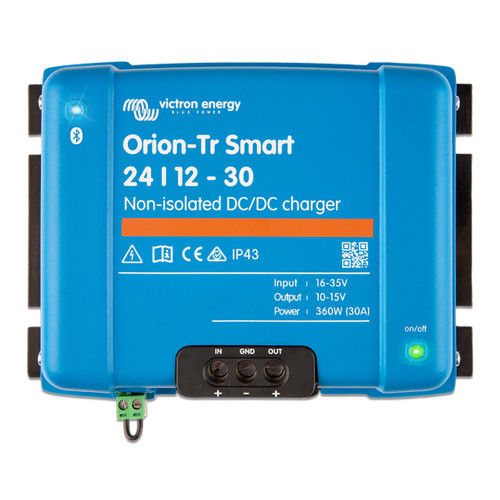

Victron Orion-TR Smart 24/12-30 DC-DC Charger | Boat Supply Store
Maintain optimal battery health in demanding marine applications or vehicles equipped with modern smart alternators and long cable runs. This unit efficiently converts 24VDC input to a stable 12VDC output, delivering up to 30A continuous current (360W at 40°C). It employs an adaptive 3-stage charging algorithm and provides galvanic isolation to protect your sensitive electronics, crucial for systems powering navigation equipment offshore.
Key Features
- Bluetooth Smart Enabled for remote monitoring and configuration via VictronConnect App.
- Isolated DC-DC charger or power supply ensures system integrity.
- Adaptive 3-Stage Charge Algorithm optimizes battery lifespan for lead-acid and lithium chemistries.
- Smart Alternator Compatibility with engine running detection for Euro 5/6 engines.
- Short Circuit Proof design for enhanced durability.
- Parallelable for increased output current capabilities.
- High Temperature Protection with automatic output current derating.
- IP43 Rated protection for electronic components with proper installation.
Specifications
| Product Specifications | |
|---|---|
| Input Voltage Range | 20-35 V |
| Adjustable Output Voltage | 10-15 V |
| Continuous Output Current at 40°C | 30 A |
| Continuous Output Current at 25°C | 430 W |
| Power at 40°C | 360 W |
| Galvanic Isolation | 200 VDC |
| IP Rating | IP43 |
| Operating Temperature Range | -20 to +40°C (derating above 40°C) |
Who This Is For
Boaters and RV owners operating 24V systems requiring a stable 12V power source or battery charging, particularly those with smart alternators or long cable runs. This device is essential for vehicles with modern Euro 5/6 engines that often feature variable voltage alternators.
How It Compares
| Feature | Victron Orion-TR Smart 24/12-30 DC-DC Charger | Competitor |
|---|---|---|
| Input Voltage Range | 20-35 V | 10-16V |
| Nominal Output Voltage | 12.2 V | 14.4V |
| Cont. Output Current at 40°C | 30 A | 60A |
| Galvanic Isolation | 200 VDC | Typically less capable |
| Bluetooth Connectivity | Yes | No |
| Smart Alternator Compatibility | Yes | Yes |
Common Concerns Answered
The Victron Energy Orion-TR Smart 24/12-30 30A seems complex to set up. How can I ensure I configure it correctly?
The VictronConnect App simplifies advanced feature configuration, making setup intuitive. For initial setup, focus on the basic wiring and input/output voltage requirements. Detailed instructions are available in the provided manual to guide you through all functionalities.
I've heard output current can derate at higher temperatures. Is this a significant issue for marine use?
The Orion-TR Smart features high temperature protection that automatically derates the output current to prevent damage in hot environments. For installations in engine rooms or other high-temperature areas, ensure adequate ventilation to minimize derating and maintain optimal performance.
Is the price point of the Victron Energy Orion-TR Smart 24/12-30 30A higher than other DC-DC converters?
While the initial investment may be higher than basic DC-DC converters, the Orion-TR Smart's advanced features, such as Bluetooth connectivity, smart alternator compatibility, and robust protection, provide superior performance and reliability, justifying the cost for demanding applications.
Frequently Asked Questions
What is the Victron Energy Orion-TR Smart 24/12-30 30A used for?
It is used to convert a 24VDC input to a stable 12VDC output, serving as an isolated DC-DC charger or a power supply for applications requiring a 12V system from a 24V source, such as charging a 12V house battery bank from a 24V engine alternator or powering 12V equipment.
Can the Orion-TR Smart charger be used with smart alternators?
Yes, the Orion-TR Smart is specifically designed to work with modern smart alternators (Euro 5/6 engines) by detecting when the engine is running to optimize charging cycles, preventing damage to the alternator and ensuring efficient battery charging.
How does the VictronConnect App enhance the Orion-TR Smart charger's functionality?
The VictronConnect App enables remote monitoring of charging status, voltage, and current, as well as configuration of charging parameters, voltage settings, and remote on/off control, offering advanced management and customization of the charger's operation.
What is the maximum continuous output power of the Orion-TR Smart 24/12-30?
The maximum continuous output power is 360W at 40°C ambient temperature and 430W at 25°C ambient temperature, with a continuous output current of 30A at 12V nominal output.
Can multiple Orion-TR Smart units be connected in parallel?
Yes, multiple Orion-TR Smart units can be connected in parallel to increase the total output current, allowing for scalable power solutions to meet higher demand requirements.
