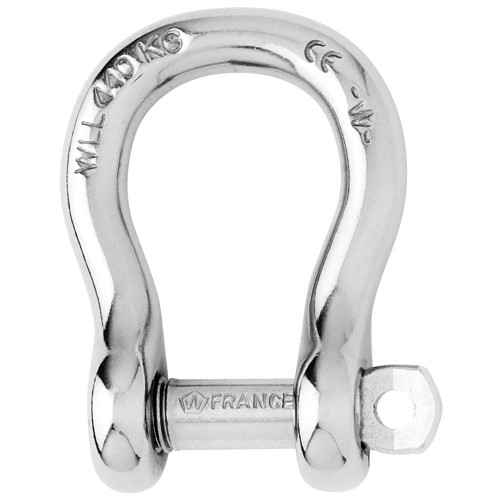

Wichard Captive Pin D Shackle 5mm | Boat Supply Store
Engineered for absolute security in demanding maritime applications, this shackle prevents accidental detachment through its integrated captive and locking pin mechanism. Constructed from premium Grade 316L stainless steel, it offers superior resistance to saltwater corrosion and mechanical fatigue. With a substantial Working Load Limit (WLL) of 660 lb and a Breaking Load of 3300 lb, it is ideal for critical anchor rode connections or permanent spar attachments on offshore sailing vessels.
Key Features
- Captive pin design ensures retention during operation.
- Vibration-resistant pin locking mechanism prevents loosening.
- Grade 316L stainless steel construction for exceptional marine corrosion resistance.
- High strength forged body for extreme load-bearing capacity.
- Long D shape provides enhanced clearance for multiple attachment points.
- Corrosion-proof material suitable for harsh offshore environments.
- Reliable connection point for critical rigging.
- Durable construction for long-term service life.
Specifications
| Product Specifications | |
|---|---|
| Diameter | 5mm (3/16") |
| Material | Grade 316L Stainless Steel |
| Pin Type | Captive and Locking |
| Working Load Limit (WLL) | 660 lb |
| Breaking Load | 3300 lb |
| Weight | 0.053 lb |
| Dimension A | 1-17/32" |
| Dimension B | 25/64" |
| Dimension C | 15/64" |
| Dimension D (Jaw Width) | 7/16" |
| Dimension D (Pin Diameter) | 13/64" |
| Dimension E | 13/64" |
| Dimension F | 2-3/64" |
| Dimension G | 1-1/16" |
Who This Is For
Sailors and marine professionals requiring a secure, high-strength attachment point for critical rigging components. This shackle is designed for those who prioritize component security and long-term durability in challenging marine environments.
How It Compares
| Feature | Wichard Captive Pin D Shackle 5mm | Competitor |
|---|---|---|
| Material | 316L Stainless Steel | 316 Stainless Steel |
| Pin Type | Captive Pin with Locking Indentations | Captive Pin |
| Working Load Limit (WLL) | 660 lb | 550 lb, 770 lb |
| Breaking Load | 3300 lb | 1650 lb, 2200 lb |
| Diameter (Shackle Body) | 5mm (3/16") | Approx. 5mm, Approx. 6mm |
Common Concerns Answered
Is the price of this shackle justified?
The Wichard Captive Pin Long D Shackle is priced to reflect its superior Grade 316L stainless steel construction and advanced captive/locking pin mechanism, offering unparalleled security and longevity that justifies the investment for critical applications.
What if I select the wrong size shackle?
Careful measurement of attachment points and consideration of the Working Load Limit (WLL) are essential for correct shackle selection. Referencing the detailed dimensions provided ensures a precise fit for your specific marine hardware needs.
Are there reported issues with this specific shackle model?
Based on available data, there are no reported complaints specific to the Wichard Captive Pin Long D Shackle (5mm), indicating high product reliability and performance in marine use.
Frequently Asked Questions
What is the working load limit (WLL) for the Wichard Captive Pin Long D Shackle (5mm)?
The Working Load Limit (WLL) for the Wichard Captive Pin Long D Shackle (5mm) is 660 lb.
What is the breaking load for this Wichard shackle?
The breaking load for this Wichard shackle is 3300 lb.
What type of stainless steel is used in the Wichard Captive Pin Long D Shackle?
The Wichard Captive Pin Long D Shackle is forged from high-strength Grade 316L stainless steel.
What are the dimensions of the Wichard Captive Pin Long D Shackle (5mm)?
The dimensions are: A=1-17/32", B=25/64", C=15/64", D (jaw width)=7/16", D (pin diameter)=13/64", E=13/64", F=2-3/64", G=1-1/16".
What applications is this Wichard shackle suitable for?
This Wichard shackle is suitable for various rigging and attachment applications, including anchor connections, standing rigging, and temporary or permanent attachment points where secure and corrosion-resistant hardware is essential.
