Description

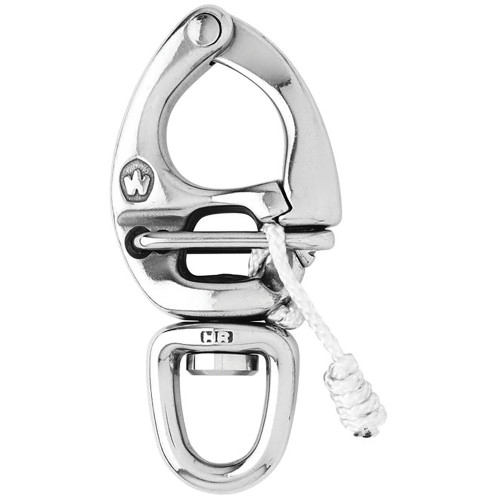

Wichard HR Quick Release Snap Shackle 90mm | Boat Supply Store
This Wichard HR Quick Release Snap Shackle is engineered for critical sailing applications where immediate and secure attachment is paramount. Constructed from HR forged 17.4 PH stainless steel, it offers superior strength with a working load of 2820 lb and a breaking load of 4400 lb. The large bail facilitates easy attachment of multiple lines, and the integrated swivel ensures free rotation. This shackle is an essential component for demanding maneuvers such as spinnaker operations on offshore vessels.
Key Features
- Superior Strength: HR forged 17.4 PH stainless steel construction provides exceptional durability.
- Rapid Release: Lanyard-activated mechanism allows for instantaneous detachment.
- Versatile Attachment: Large bail accommodates multiple lines simultaneously.
- High Load Capacity: Rated for 2820 lb working load and 4400 lb breaking load.
- Corrosion Resistance: 17.4 PH stainless steel offers robust protection in marine environments.
- Freedom of Movement: Integrated swivel prevents line twisting and allows full rotation.
- User-Friendly Operation: Effortless deployment and attachment for demanding tasks.
- Engineered for Performance: Designed for critical sailing maneuvers.
Specifications
| Product Specifications | |
|---|---|
| Length | 90mm (3-35/64") |
| Material | HR 17.4 PH stainless steel |
| Working Load | 2820 lb (1280 kg) |
| Breaking Load | 4400 lb (2000 kg) |
| Weight | 0.22 lb (100 g) |
| Dimension A | 5/8" (16mm) |
| Dimension B | 29/32" (23mm) |
| Release Mechanism | Lanyard Pull |
| Swivel | Yes |
Who This Is For
Sailors and boaters requiring a high-strength, reliable quick-release snap shackle for demanding applications. This shackle is ideal for critical maneuvers like spinnaker operations and managing multiple lines in challenging marine conditions.
How It Compares
| Feature | Wichard HR Quick Release Snap Shackle 90mm | Ronstan RF3500 Series Quick Release Snap Shackle |
|---|---|---|
| Material | HR 17.4 PH Stainless Steel | 316 Stainless Steel |
| Working Load (lb) | 2820 | 2200 |
| Breaking Load (lb) | 4400 | 3300 |
| Length (mm) | 90 | approx. 85 |
| Quick Release Mechanism | Lanyard Pull | Lanyard Pull |
| Swivel | Yes | Yes |
Common Concerns Answered
Is the price of this shackle justified compared to standard options?
While the initial investment for the Wichard HR Quick Release Snap Shackle may be higher than standard shackles, its HR forged 17.4 PH stainless steel construction and superior load ratings (2820 lb WL, 4400 lb BL) offer exceptional strength and durability, making it a cost-effective choice for critical safety and performance applications where failure is not an option.
What if the lanyard for the quick-release mechanism is lost?
The lanyard is designed for secure operation; however, for added security and to prevent accidental loss, it is recommended to attach a secondary retainer or secure it to the shackle body when not actively being used for release.
How does the strength of this shackle compare to others?
The Wichard HR Quick Release Snap Shackle boasts a working load of 2820 lb and a breaking load of 4400 lb, significantly exceeding many competitors made from 316 stainless steel, ensuring greater reliability under extreme loads.
Frequently Asked Questions
What is the working load limit of the Wichard HR Quick Release Snap Shackle?
The working load limit for this Wichard HR Quick Release Snap Shackle is 2820 lb (1280 kg).
What is the breaking load of the Wichard HR Quick Release Snap Shackle?
The breaking load for this Wichard HR Quick Release Snap Shackle is 4400 lb (2000 kg).
What material is the Wichard HR Quick Release Snap Shackle made from?
This Wichard snap shackle is constructed from HR forged 17.4 PH stainless steel.
What is the primary application for this Wichard snap shackle?
This Wichard snap shackle is ideally suited for critical sailing maneuvers, particularly for spinnaker operations and attaching multiple lines.
How does the quick-release mechanism work on this shackle?
The quick-release mechanism is activated by pulling the lanyard, allowing for rapid detachment of the shackle.
