Actisense 1M NMEA 2000 Micro Cable | Boat Supply Store

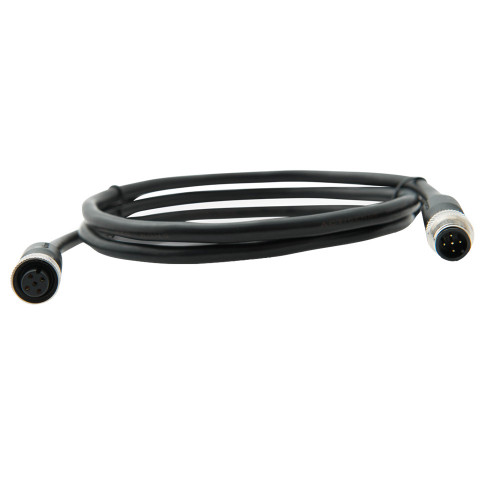

Establish or extend your NMEA 2000 network with the Actisense A2K-TDC-1M, a 1-meter Micro cable assembly engineered for dependable data transmission. This cable features a robust 6.85mm PVC jacket and M12 'A'-polarization connectors, ensuring IP67 protection when mated, which is crucial for offshore navigation systems on vessels operating in the Gulf of Mexico. The five-wire construction includes 22 AWG power/drain and 24 AWG data wires, providing a stable conduit for critical sensor data up to 60VDC and 3A.
Key Features
- Reliable UL-certified Actisense cable construction
- Durable IP67 protection when mated for harsh marine environments
- Versatile suitability for both backbone and drop cable applications
- Comprehensive five-wire design (power, ground, two data, drain)
- Protected shielded cable against radio frequency interference
- Secure M12 'A'-polarization connectors for a positive lock
- High-Performance gold-plated brass and phosphor bronze contacts
- Optimal 1-meter length for precise network segment construction
Specifications
| Product Specifications | |
|---|---|
| Cable Length | 1 meter |
| Connector Type | M12 'A'-polarization |
| Jacket Material | PVC |
| Jacket Diameter | 6.85mm |
| Power/Drain Wire Gauge | 22 AWG |
| Data Wire Gauge | 24 AWG |
| Ingress Protection (mated) | IP67 |
| Current Rating | 3A |
| Voltage Rating | 60VDC |
| Operating Temperature | -20°C to +70°C |
Who This Is For
Marine electronics installers and boat owners requiring a reliable 1-meter cable to expand their existing NMEA 2000 network or connect new devices. System integrators will find this UL-certified assembly a dependable component for custom network configurations.
How It Compares
| Feature | Actisense 1M NMEA 2000 Micro Cable | Garmin 010 |
|---|---|---|
| Length | 1m | 1.5m, 2m |
| Connector Type | M12 'A'-polarization | Micro-C, Micro-C |
| Jacket Material | PVC | PVC, PVC |
| IP Rating (mated) | IP67 | IP67, IP67 |
| UL-Certified Cable | Yes | Unknown, Unknown |
Common Concerns Answered
Can this Actisense cable be returned if it's not compatible?
Actisense products, including this cable assembly, cannot be returned to the point of purchase for compatibility issues or change of mind. It is crucial to verify your NMEA 2000 system requirements before purchasing.
Why is this cable shorter than some other NMEA 2000 cables?
This 1-meter cable is designed for specific network layouts requiring precise segment lengths, such as extending a backbone near a control station or connecting a short-range device. For longer runs, multiple Actisense cables or longer backbone cables are available.
What if I have an issue with this cable after installation?
While direct returns are not possible, Actisense offers expert technical support. Verify proper installation and ensure the issue is with the cable itself before contacting their support for warranty or troubleshooting assistance.
Frequently Asked Questions
What is the maximum length for a NMEA 2000 backbone using Actisense Lite cable?
The maximum recommended length for a NMEA 2000 backbone using Actisense Lite cable is 100 meters (approximately 328 feet). This is dependent on the number of devices connected and proper termination.
What is the maximum length for a drop cable from a NMEA 2000 backbone?
The maximum recommended length for a drop cable from a NMEA 2000 backbone to a device is 6 meters (approximately 20 feet). Exceeding this can lead to signal degradation and network instability.
What is the total maximum length for all drop cables combined on a NMEA 2000 network?
The total combined length of all drop cables on a NMEA 2000 network should not exceed 78 meters (approximately 256 feet) to maintain reliable network performance.
What type of connectors does the Actisense A2K-TDC-1M use?
The Actisense A2K-TDC-1M utilizes M12 'A'-polarization connectors, which are standard for NMEA 2000 Micro style connections, ensuring compatibility with a wide range of marine electronics.
What is the IP rating of the Actisense A2K-TDC-1M when mated?
When properly mated, the Actisense A2K-TDC-1M provides an IP67 ingress protection rating, meaning it is dust-tight and protected against immersion in water up to 1 meter for 30 minutes, making it suitable for wet marine environments.
