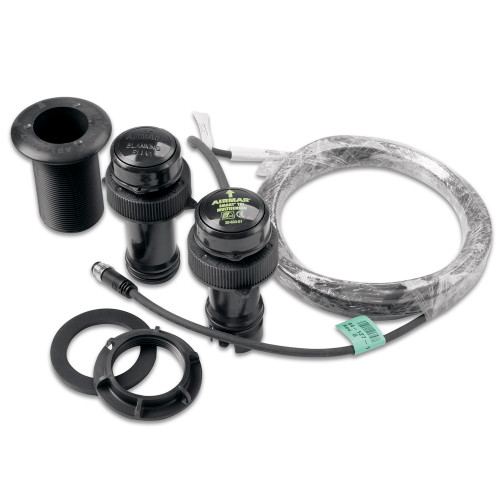

Airmar DT800 NMEA 2000 Transducer | Boat Supply Store
For boaters requiring accurate depth and temperature readings, this integrated NMEA 2000 sensor offers a streamlined solution without a fairing block. Its 20-degree fixed tilt element optimizes readings for hulls with 16-24 degree deadrise, and the 235 kHz frequency minimizes interference with other onboard systems. With a depth range of 1.6 to 594 feet and 100 Watts RMS power output, this low-profile, retractable unit ensures reliable data for coastal cruising or offshore fishing operations.
Key Features
- Integrated depth and temperature functions in a single, compact housing
- Low-profile, retractable, thru-hull design for minimal drag
- Tilted Element Transducer for optimal readings without hull protrusion
- Fixed 20-degree tilt compensates for hull deadrise between 16 and 24 degrees
- Exclusive Broadband Ceramic Technology for enhanced signal processing
- 235 kHz element for improved resolution and reduced interference
- Smart™ Sensor with embedded microelectronics for plug-and-play NMEA 2000 connectivity
- Retractable housing with self-closing valve for easy servicing
Specifications
| Product Specifications | |
|---|---|
| Functions | Depth/Temperature |
| Material | Plastic |
| Fixed Tilt | 20 degrees (for 16-24 degree hull deadrise) |
| Frequency | 235 kHz |
| Cone | 12 degrees |
| Power | 100 Watts RMS |
| Connector | 5-Pin NMEA 2000 |
| Cable Length | 20 ft |
| Depth Range | 1.6 - 594 ft |
| Acoustic Window | Urethane |
| Compatible Hull | Fiberglass or metal |
| Installation Hole | 2" |
| Dimensions | 4.92" H x 2.94" OD |
Who This Is For
Power and sail boat owners seeking an integrated, high-performance depth and temperature sensor with NMEA 2000 connectivity. This transducer is specifically beneficial for vessels with hull deadrise between 16 and 24 degrees.
How It Compares
| Feature | Airmar DT800 NMEA 2000 Transducer | Raymarine proprietary |
|---|---|---|
| Functions | Depth, Temperature | DownVü, SideVü, Traditional Sonar, Temperature, RealVision 3D, DownVision, SideVision, Traditional Sonar, Temperature |
| Sonar Technology | Traditional Sonar (235 kHz) | CHIRP (260/455 kHz), CHIRP (200/350/455/770 kHz), RealVision 3D |
| Connector Type | 5-Pin NMEA 2000 | 12-pin, 12-pin |
| Fixed Tilt Angle | 20 degrees | N/A (designed for specific hull types), N/A |
| Hull Material Compatibility | Fiberglass or metal | Fiberglass, wood, or metal, Bronze |
Common Concerns Answered
Will this transducer provide detailed underwater imaging like DownVü or SideVü?
The Airmar DT800 is designed for precise depth and temperature readings utilizing traditional sonar frequencies, not for advanced imaging like DownVü or SideVü. For detailed underwater imaging, consider transducers specifically engineered for those functions.
Is the installation of a thru-hull transducer difficult?
Installing a thru-hull transducer requires drilling a hole through the hull and ensuring a watertight seal, which can be complex for individuals unfamiliar with marine thru-hull fittings. Professional installation is recommended if you are not confident in your ability to perform this task correctly.
Can I use this transducer with any sonar unit?
The Airmar DT800 utilizes a 235 kHz frequency and outputs data via NMEA 2000. Ensure your sonar head unit is compatible with this specific frequency and NMEA 2000 data protocol for optimal performance.
Frequently Asked Questions
What hull deadrise angles is the 20-degree tilted element designed for?
The 20-degree fixed tilt is engineered to provide optimal performance on hulls with a deadrise ranging from 16 to 24 degrees.
What is the operating frequency of the Airmar DT800?
The Airmar DT800 operates at a frequency of 235 kHz, which is chosen to minimize interference with other common onboard marine electronics.
What hull materials can the Airmar DT800 be installed in?
This thru-hull transducer is compatible with fiberglass or metal hulls, providing versatility for various boat constructions.
What is the power output of this Airmar sensor?
The Airmar DT800 Smart Sensor has a power output of 100 Watts RMS, ensuring sufficient signal strength for accurate readings.
Can the Airmar DT800 be serviced without hauling the boat?
Yes, the retractable housing features a self-closing valve, allowing the transducer element to be removed for servicing or replacement without needing to haul the vessel out of the water.
