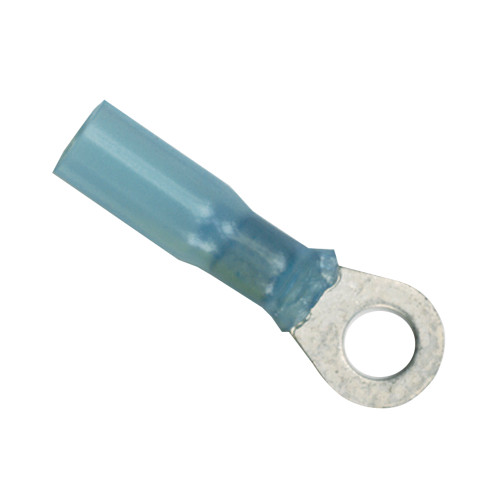

Heat Shrink Ring Terminals 16-14 Gauge #10 | Boat Supply Store
This Ancor heat shrink ring terminal is engineered to create ultra-reliable electrical connections in demanding marine environments. Its proprietary heat-activated adhesive lining within the cross-linked polyolefin tubing ensures a watertight seal, preventing corrosion and conductivity loss, while offering robust strain relief. Rated for a 3:1 shrink ratio and operating temperatures from -40°C to 110°C, these terminals are ideal for critical systems on offshore fishing vessels or coastal cruisers.
Key Features
- Durable 16-14 Gauge Wire Compatibility
- Secure #10 Screw Size Fitment
- Bulk 100-Pack Quantity for Projects
- Resilient Cross-linked Polyolefin Tubing
- Watertight Heat-Activated Adhesive Seal
- Robust Nylon Insulator for Marine Durability
- Certified UL Listed and CSA Recognized
- Corrosion-Resistant Tinned Pure Copper Construction
Specifications
| Product Specifications | |
|---|---|
| Wire Gauge | 16-14 AWG |
| Screw Size | #10 |
| Terminal Type | Heat Shrink Ring Terminal |
| Pack Quantity | 100 |
| Tubing Material | Cross-linked Polyolefin |
| Adhesive Lining | Heat-activated |
| Insulator Material | Nylon |
| UL Listing | UL Listed |
| CSA Recognition | CSA Recognized |
| Shrink Ratio | 3:1 |
| Shrink Temperature | 257°F/125°C |
| Operating Temperature Range | -40°C to 110°C |
| Conductor Material | Tinned Pure Copper |
| Seam Type | Brazed |
Who This Is For
Marine enthusiasts and boat owners requiring exceptionally durable and waterproof electrical connections for their vessels will benefit from this terminal's robust construction. Professional marine technicians can also rely on these connectors for critical installations where failure is not an option.
How It Compares
| Feature | Heat Shrink Ring Terminals 16-14 Gauge #10 | Competitor |
|---|---|---|
| Wire Gauge | 16-14 AWG | 10-12 AWG |
| Screw Size | #10 | #10 |
| Insulation Material | Cross-linked Polyolefin Tubing with Nylon Insulator | Vinyl |
| Seal Type | Heat-activated adhesive lining (watertight) | Standard crimp |
| Shrink Ratio | 3:1 | null |
| Quantity | 100 | 10 |
Common Concerns Answered
Why are Ancor heat shrink terminals more expensive than standard terminals?
While the initial cost may appear higher than non-marine grade alternatives, Ancor terminals justify the investment through superior longevity and unparalleled reliability. The specialized marine-grade materials and construction are designed to withstand harsh conditions, offering a significantly longer service life and preventing costly repairs associated with electrical failures.
What is required to install Ancor heat shrink ring terminals?
Proper installation of these heat shrink terminals requires a standard crimping tool to secure the terminal to the wire, followed by the application of heat with a heat gun. This process activates the adhesive lining and ensures a watertight, secure connection, which is a standard procedure for all high-quality heat shrink electrical components.
How does the nylon insulator in Ancor terminals provide superior protection in marine environments?
The robust nylon insulator is specifically engineered for marine applications, offering exceptional resistance to degradation from UV sunlight, moisture, engine oils, and various chemical exposures. Furthermore, it provides superior protection against vibration-induced wear and cut-through damage, ensuring the integrity of electrical connections even in the most challenging conditions.
Frequently Asked Questions
What gauge wire is compatible with the Ancor 16-14 Gauge - #10 Heat Shrink Ring Terminal?
This Ancor ring terminal is specifically designed for use with electrical wire gauges ranging from 16 AWG to 14 AWG.
What size screw terminal is needed for this Ancor ring terminal?
The terminal has a #10 screw size opening, making it compatible with #10 screws or bolts.
How many Ancor heat shrink ring terminals are included in a pack?
Each pack contains 100 Ancor heat shrink ring terminals.
What is the shrink ratio of Ancor heat shrink tubing?
The heat shrink tubing on these terminals features a 3:1 shrink ratio, meaning it shrinks to one-third of its original diameter.
What is the operating temperature range for Ancor heat shrink connectors?
Ancor heat shrink connectors are rated for an operating temperature range of -40°C to 110°C (-40°F to 230°F).
