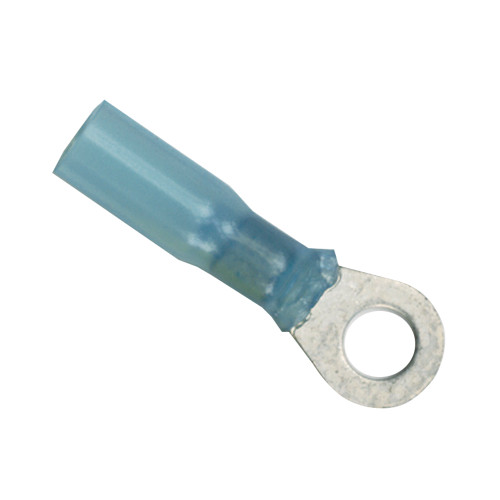

Ancor Heat Shrink Ring Terminals #10 16-14AWG | Boat Supply Store
Ensure maximum electrical integrity in demanding marine environments with Ancor's 16-14 Gauge #10 Heat Shrink Ring Terminals. Engineered with a proprietary heat-activated adhesive lining within cross-linked polyolefin tubing, these terminals provide an impervious, watertight seal that resists saltwater, oil, and sunlight, crucial for offshore fishing vessels or high-performance boats. The tinned pure copper construction ensures optimal current flow and corrosion resistance, while the brazed seam and nylon insulator offer superior strain relief and cut-through protection, rated for -40°C to 110°C operating temperatures.
Key Features
- Achieve a watertight seal with heat-activated adhesive lining.
- Ensure superior strength and non-burning properties with cross-linked polyolefin tubing.
- Gain Marine Grade™ resistance against sunlight, water, oil, and chemicals via nylon insulator.
- Benefit from maximum current flow and corrosion resistance with tinned pure copper construction.
- Experience maximum strength from the brazed seam construction.
- Secure connections with a 3:1 shrink ratio, shrinking to 1/3 original size.
- Maintain optimal performance across a wide temperature range (-40°C to 110°C).
- Guarantee safety and quality with UL Listed and CSA Recognized certifications.
Specifications
| Product Specifications | |
|---|---|
| Gauge | 16-14 AWG |
| Screw Size | #10 |
| Quantity | 25 terminals per pack |
| Tubing Material | Cross-linked polyolefin |
| Adhesive Lining | Heat-activated |
| Insulator Material | Nylon |
| Certifications | UL Listed, CSA Recognized |
| Shrink Ratio | 3:1 |
| Shrink Temperature | 257°F (125°C) |
| Operating Temperature Range | -40°C to 110°C |
| Conductor Material | Tinned pure copper |
| Seam Type | Brazed |
Who This Is For
Marine enthusiasts and professional technicians demanding reliable, long-lasting electrical connections for vessels operating in harsh saltwater or humid conditions. Ideal for boat owners and builders requiring robust, waterproof terminations that withstand environmental stressors and vibration.
How It Compares
| Feature | Ancor Heat Shrink Ring Terminals #10 16-14AWG | Polyolefin |
|---|---|---|
| Gauge Size | 16-14 AWG | 16-14 AWG |
| Screw Size | #10 | #10 |
| Insulation Material | Nylon (Heat Shrink Polyolefin) | Vinyl, Heat Shrink |
| Quantity | 25 | 10, 25 |
| Seal Type | Heat Activated Adhesive Lining | Standard Crimp Seal, Heat Shrink Seal |
| Shrink Ratio | 3:1 | null, Typically 2:1 |
Common Concerns Answered
Are these terminals difficult to install?
Installation requires basic electrical knowledge and a heat gun for optimal results. Proper wire stripping and consistent heat application are key to achieving a secure, waterproof seal, as noted in installation difficulty level 2.
Can I achieve a reliable waterproof seal every time?
While occasional reports mention difficulty with inconsistent heat application, Ancor's heat-activated adhesive lining is designed to create an impervious seal against saltwater and other marine contaminants when applied correctly with a heat gun.
Are these terminals more expensive than standard connectors?
While potentially perceived as a higher initial investment compared to non-marine grade or non-heat shrink terminals, the superior durability, robust waterproof seal, and extended longevity in harsh marine environments offer significant long-term value and justify the cost.
Frequently Asked Questions
What gauge wire is compatible with these Ancor heat shrink ring terminals?
These terminals are designed for use with 16-14 Gauge wire.
What size screw does the #10 ring terminal accommodate?
The #10 ring terminal is designed to accommodate a #10 size screw.
How many terminals are included in this pack?
This pack includes 25 Ancor heat shrink ring terminals.
What is the operating temperature range for these terminals?
These terminals have an operating temperature range of -40°C to 110°C.
Are these terminals waterproof and resistant to marine environments?
Yes, the heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and sunlight, providing robust resistance to harsh marine environments.
