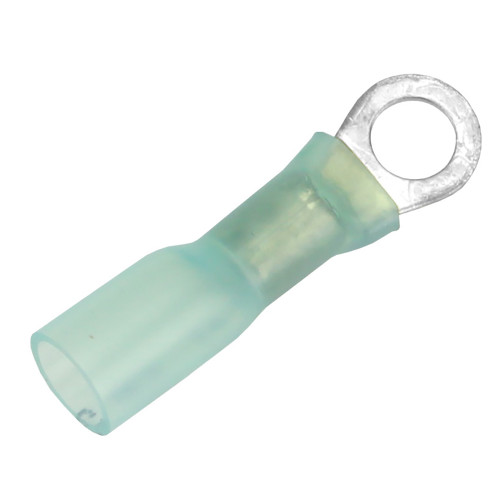

Pacer Heat Shrink Ring Terminal 16-14 AWG 5/16" | Boat Supply Store
Ensure unwavering electrical integrity in demanding marine environments with this Pacer 16-14 AWG heat shrink ring terminal featuring a 5/16" stud size. Constructed from tinned copper, it provides superior corrosion resistance against saltwater and humidity, critical for vessels operating in coastal Texas waters. With a robust 600V rating and an operating temperature range of -55°C to 125°C, these terminals guarantee reliable power delivery for essential onboard systems. The integrated heat shrink insulation offers a mechanically strong and environmentally sealed connection, preventing vibration-induced loosening and ingress of moisture.
Key Features
- Corrosion Resistance with tinned copper construction
- Secure Connections via integrated heat shrink insulation
- Optimal Wire Compatibility for 16-14 AWG stranded wire
- Standard 5/16" Stud Size for common mounting hardware
- High Voltage Rating of 600 Volts for electrical safety
- Wide Temperature Tolerance from -55°C to 125°C
- Durable Terminal Pad measuring 0.48 inches wide
- UL Listed for assured safety and quality
Specifications
| Product Specifications | |
|---|---|
| Wire Gauge | 16-14 AWG |
| Stud Size | 5/16" |
| Quantity | 25 Pack |
| Material | Tinned Copper |
| Voltage Rating | 600V |
| Operating Temperature | -55°C to 125°C |
| Terminal Pad Width | 0.48 inches |
| Insulation Type | Heat Shrink |
| Insulation Color | Blue |
Who This Is For
Marine enthusiasts and DIY boaters requiring robust, long-lasting electrical connections for their vessels. Professional marine technicians will also benefit from the reliable performance and ease of use in critical wiring applications.
How It Compares
| Feature | Pacer Heat Shrink Ring Terminal 16-14 AWG 5/16" | Ancor |
|---|---|---|
| Wire AWG | 16-14 AWG | 16-14 AWG |
| Stud Size (inch) | 5/16" | 5/16" |
| Package Size | 25 Pack | 25 Pack |
| Material | Tinned Copper | Tinned Copper |
| Insulation Type | Heat Shrink | Heat Shrink |
Common Concerns Answered
Is it difficult to get a proper crimp with these terminals?
Achieving a perfect crimp is best ensured by using a quality crimping tool designed for marine terminals; some users report difficulty without the correct tool, so selecting the appropriate crimper is key for a reliable connection.
What is the best way to apply the heat shrink tubing?
To ensure optimal sealing and avoid damage, apply heat evenly with a heat gun or torch, allowing the tubing to shrink and conform tightly to the wire and terminal; careful application prevents melting or scorching.
Is the price justified for this marine terminal?
While price can be a factor, the superior quality, marine-grade materials, and durability of Pacer components like this heat shrink ring terminal offer long-term reliability, which is a crucial investment for any vessel's electrical system.
Frequently Asked Questions
What is the maximum wire gauge this ring terminal can accommodate?
This ring terminal is designed to accommodate wire gauges from 16 AWG to 14 AWG.
What is the stud size this ring terminal is designed for?
The stud size this ring terminal is designed for is 5/16 inches.
What is the operating temperature range for this heat shrink ring terminal?
The operating temperature range for this heat shrink ring terminal is from -55°C to 125°C.
What material is the terminal pad made of?
The terminal pad is constructed from tinned copper for enhanced corrosion resistance.
How many ring terminals are included in this pack?
This pack includes 25 Pacer heat shrink ring terminals.
