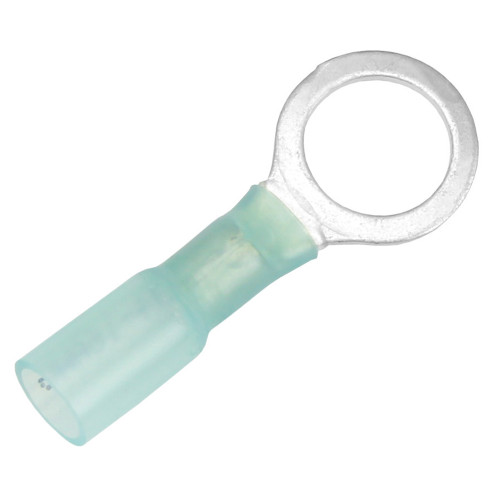

Pacer 16-14 AWG Heat Shrink Ring Terminals | Boat Supply Store
Ensure robust and lasting electrical connections in demanding marine environments with Pacer's 16-14 AWG heat shrink ring terminals. Featuring tinned copper construction for superior corrosion resistance and an integrated heat shrink tubing that provides insulation and strain relief, these terminals are rated for up to 600V. Their 5/16" stud size makes them ideal for securing electrical components on offshore fishing vessels or for critical systems on cruising catamarans operating in saltwater conditions.
Key Features
- Corrosion-resistant tinned copper construction withstands harsh marine conditions.
- Integrated heat shrink tubing offers superior insulation and strain relief for connection longevity.
- Designed for 16-14 AWG wire, ensuring a secure fit for common marine applications.
- 5/16" stud size compatibility accommodates standard mounting hardware.
- 600 Volt rating ensures safe operation in high-power electrical systems.
- Wide operating temperature range from -55°C to 125°C is suitable for extreme climates.
- 100-pack convenience offers an economical solution for multiple installations or future repairs.
- Reliable electrical integrity prevents failures in vibration-prone environments.
Specifications
| Product Specifications | |
|---|---|
| wire_gauge | 16-14 AWG |
| stud_size | 5/16" |
| color | Blue |
| material | Tinned Copper |
| voltage_rating | 600V |
| operating_temperature | -55°C to 125°C |
| terminal_pad_width | 0.48" |
| pack_size | 100 |
Who This Is For
Marine electricians requiring reliable, durable connections and boat owners undertaking DIY repairs will find these terminals essential for maintaining vessel electrical integrity. This product is also ideal for any boater needing to make secure, long-lasting electrical connections in challenging marine settings.
How It Compares
| Feature | Pacer 16-14 AWG Heat Shrink Ring Terminals | Ancor |
|---|---|---|
| Wire Gauge | 16-14 AWG | 16-14 AWG |
| Stud Size | 5/16" | 5/16" |
| Color | Blue | Blue |
| Pack Size | 100 | 25 |
Common Concerns Answered
Are these terminals difficult to install?
While a proper crimp is essential for secure connections, these terminals require basic electrical knowledge and a suitable crimping tool. Improper heat application to the shrink tubing can also lead to uneven results, so following best practices for heat gun usage is recommended.
Is the initial cost of a 100-pack prohibitive for small projects?
While the upfront cost for a 100-pack may appear higher than smaller quantities, the per-unit cost is significantly reduced, making it a more economical choice for ongoing marine electrical needs and ensuring you have sufficient supply for multiple projects.
What happens if the heat shrink doesn't shrink properly?
Uneven shrinking of the heat shrink tubing can occur if heat is not applied uniformly and at the correct temperature. Consistent, direct heat application around the entire terminal base will ensure a tight, weather-resistant seal, crucial for marine environments.
Frequently Asked Questions
What is the maximum voltage rating for these Pacer heat shrink ring terminals?
These Pacer heat shrink ring terminals have a maximum voltage rating of 600 Volts.
What wire gauge range are these terminals designed for?
These terminals are specifically designed for use with 16 to 14 AWG wire gauges.
What is the stud size these Pacer ring terminals are designed to fit?
The stud size these Pacer ring terminals are designed to fit is 5/16 inches.
What is the operating temperature range for these terminals?
These terminals are rated for an operating temperature range of -55°C to 125°C.
Are these terminals suitable for marine environments?
Yes, these terminals are constructed with tinned copper and feature heat shrink tubing, making them highly suitable and durable for harsh marine environments.
