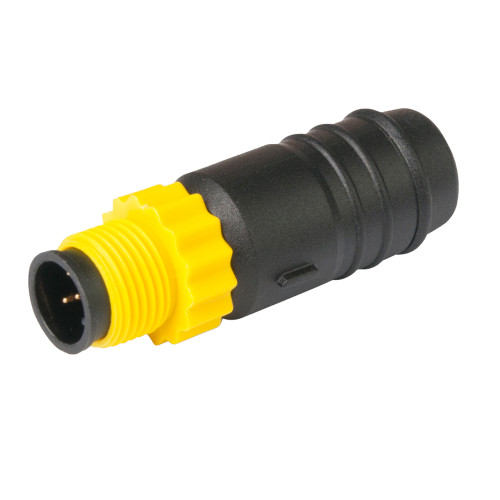

Veratron NMEA 2000 Male Terminator | Boat Supply Store
Properly conclude your NMEA 2000® network backbone to prevent signal reflection and ensure data integrity with this Veratron male terminator. Engineered for seamless integration with Veratron's CAN BUS, Acqualink, and OceanLink gauges and equipment, it provides essential termination for reliable data transmission. This component is critical for preventing network errors that can arise from improper termination, especially on complex systems aboard offshore fishing vessels or long-range cruisers.
Key Features
- Ensures NMEA 2000® network stability by preventing signal reflection.
- Designed for direct integration with Veratron CAN BUS, Acqualink, and OceanLink systems.
- Provides a definitive end to your NMEA 2000® backbone.
- Certified to NMEA 2000® standards for guaranteed performance.
- Male connector type facilitates straightforward installation on unused T-connectors.
- Robust construction for marine environments.
- Individual unit sale simplifies purchasing for specific network needs.
- Resolves common network issues stemming from missing or extra terminators.
Specifications
| Product Specifications | |
|---|---|
| Brand | Veratron |
| Product Name | NMEA 2000® Male Terminator |
| MPN | A2C3931100001 |
| SKU | CWR82500 |
| Connector Type | Male |
| NMEA 2000 Certified | Yes |
| Compatibility | CAN BUS, Acqualink, OceanLink Gauges and Equipment |
| Unit Sale | Individual |
Who This Is For
Marine electronics installers and boat owners require this terminator to properly conclude an NMEA 2000® network backbone, ensuring optimal data flow. Technicians working with Veratron's Acqualink and OceanLink systems will find this essential for maintaining network integrity.
How It Compares
| Feature | Veratron NMEA 2000 Male Terminator | Competitor |
|---|---|---|
| Connector Type | Male | Male |
| NMEA 2000 Certified | Yes | Yes |
| Compatibility Highlight | CAN BUS, Acqualink, OceanLink Gauges and Equipment | General NMEA 2000 Network |
Common Concerns Answered
What happens if I don't use enough terminators on my NMEA 2000 network?
Insufficient termination can lead to signal reflections, causing intermittent data dropouts, erroneous readings, and overall network instability. This product ensures your network is properly concluded.
I'm unsure if I need a male or female terminator. How can I tell?
Male terminators are used on the male ports of unused T-connectors on the NMEA 2000 backbone. Female terminators are used on female ports. This product is the male variant.
Will using a terminator from Veratron cause issues with my existing non-Veratron NMEA 2000 devices?
As this is a standard NMEA 2000® component, it will function correctly on any compliant NMEA 2000® network. Its unique value lies in its seamless integration with Veratron's proprietary systems, but it adheres to the universal NMEA 2000® standard for all termination needs.
Frequently Asked Questions
What is the fundamental purpose of an NMEA 2000 terminator?
An NMEA 2000 terminator is used at each physical end of the network backbone to absorb electrical signals and prevent them from reflecting back into the network, which can corrupt data.
When exactly should I use a male terminator like this Veratron model?
You need to use this male terminator when you have an unused male port on a T-connector situated at the physical end of your NMEA 2000® network backbone. It concludes that branch of the network.
Is this Veratron terminator compatible with all NMEA 2000 networks, regardless of brand?
Yes, this Veratron NMEA 2000® Male Terminator adheres to the NMEA 2000® standard and is compatible with all NMEA 2000® certified networks and devices for termination purposes. Its specialized compatibility is with Veratron's own ecosystem for optimized performance.
Can I use this terminator if I only have a few devices connected and not a full Veratron system?
Absolutely. If your NMEA 2000® network requires termination at a male port on the backbone, this unit will fulfill that function, regardless of whether you are using other Veratron components.
What is the key distinction between a male and female NMEA 2000 terminator in terms of installation?
The distinction is based on the gender of the port on the NMEA 2000® backbone's T-connector that needs termination. A male terminator screws into a female port on a T-connector, and a female terminator screws into a male port on a T-connector.
