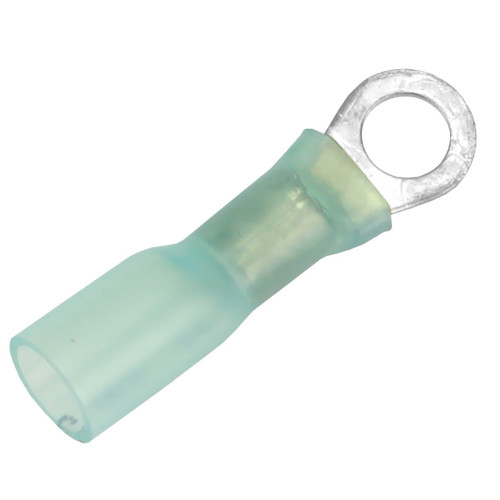

Pacer Heat Shrink Ring Terminal #10 Stud | Boat Supply Store
This Pacer 16-14 AWG heat shrink ring terminal ensures robust electrical connections in harsh marine environments, mitigating corrosion and vibration-induced failures. Constructed from highly compliant, tinned copper, it withstands extreme operating temperatures from -55°C to 125°C and is rated for up to 600V, making it ideal for offshore applications where reliability is paramount. The integrated heat shrink tubing creates a weather-resistant seal around crimped connections, preventing moisture ingress that can lead to system malfunctions on fishing vessels or offshore platforms.
Key Features
- Reliable 16-14 AWG wire compatibility for versatile application.
- Secure #10 stud size ensures a firm connection to busbars and studs.
- Durable Heat shrink insulation provides superior strain relief and environmental protection.
- Corrosion-Resistant Tinned copper construction maintains conductivity in saltwater environments.
- High-Voltage 600 Volt rating meets demanding electrical system requirements.
- Wide-Temperature -55°C to 125°C operating temperature range for all-weather use.
- Compliant Highly compliant design for optimal electrical contact.
- Bulk 100 terminals per pack for efficient project completion.
Specifications
| Product Specifications | |
|---|---|
| Color | Blue |
| Wire Gauge | 16-14 AWG |
| Stud Size | #10 |
| Terminal Pad Width | 0.32" |
| Pack Size | 100 terminals |
| Material | Tinned Copper |
| Voltage Rating | 600V |
| Operating Temperature Range | -55°C to 125°C |
Who This Is For
Ideal for marine electricians and boat owners performing custom wiring or repairs, these terminals offer professional-grade security for DIY enthusiasts. Anyone requiring durable, weather-resistant electrical connections in demanding maritime conditions will benefit from this product's construction.
How It Compares
| Feature | Pacer Heat Shrink Ring Terminal #10 Stud | Ancor Heat Shrink Ring Terminal |
|---|---|---|
| Wire AWG | 16-14 AWG | 16-14 AWG |
| Stud Size | #10 | #10 |
| Color | Blue | Blue |
| Material | Tinned Copper | Tinned Copper |
| Insulation Type | Heat Shrink | Heat Shrink |
| Terminal Pad Width (inch) | 0.32" | 0.31" |
| Package Size | 100 | 100 |
Common Concerns Answered
Will these terminals provide a secure, lasting connection in a marine environment?
Absolutely. Pacer's terminals feature a tinned copper construction for corrosion resistance and integrated heat shrink insulation that, when properly applied, creates a robust, weather-resistant seal essential for the demanding marine environment and long-term electrical integrity.
Are there common installation pitfalls to avoid with these heat shrink terminals?
Users should ensure even heat application for the shrink tubing to achieve a uniform seal, preventing potential gaps. Additionally, utilizing a marine-grade crimping tool specifically designed for the 16-14 AWG range is crucial for a consistently secure crimp, avoiding connectivity issues.
How do these compare in pad width to other leading brands like Ancor or Blue Sea Systems?
This Pacer terminal offers a 0.32" pad width, which is negligibly larger than the 0.31" found on Ancor and Blue Sea Systems alternatives, providing ample surface area for secure stud contact without compromising fitment on standard #10 studs.
